Antenna
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Aug 29, 2016
filing date -
Apr 3, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

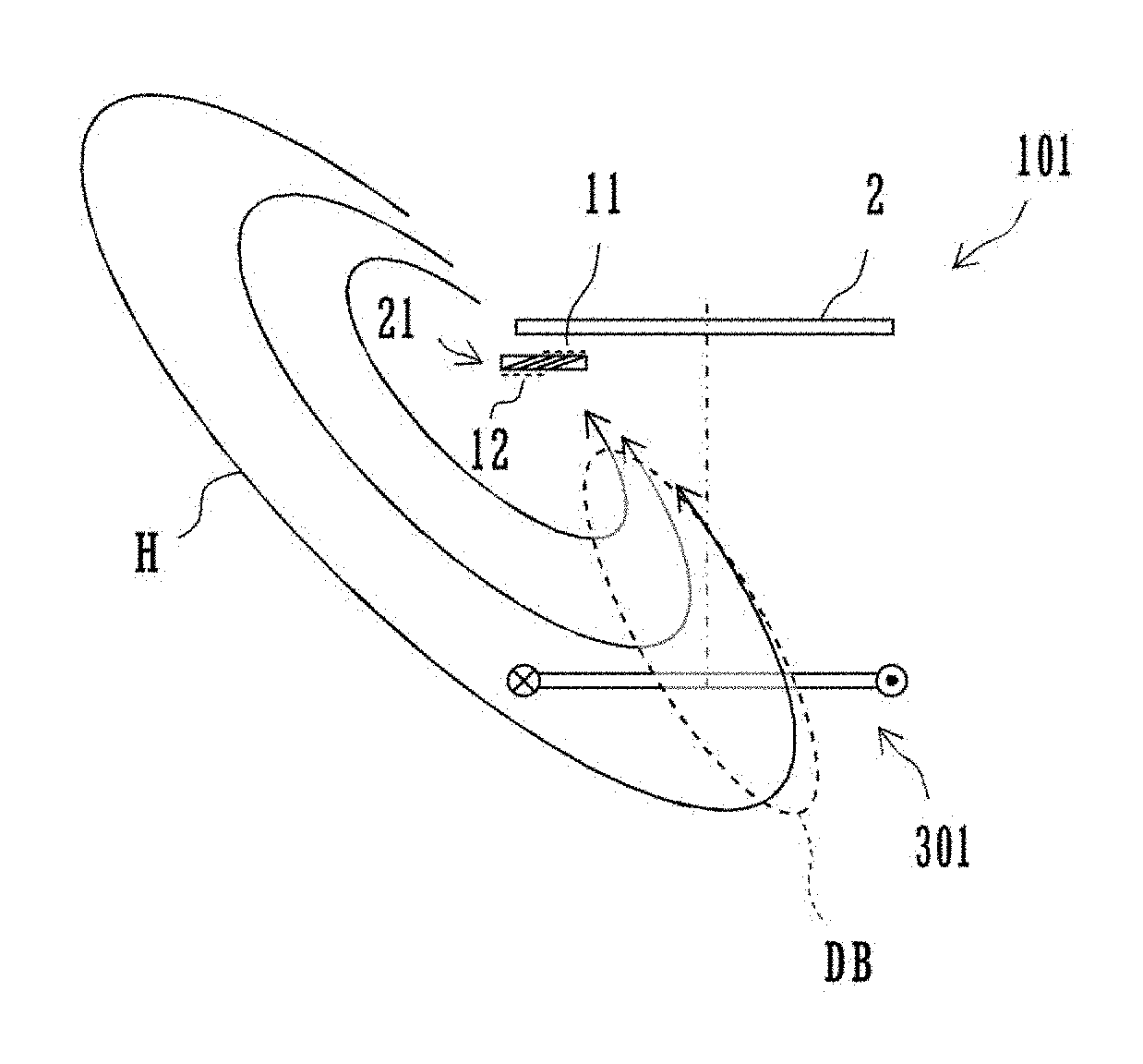

An antenna includes antenna coil having a magnetic-material core and a coil conductor. The antenna coil is arranged toward a side of a planar conductor, such as a circuit board. Of the coil conductor, a first conductor part close to a first main face of the magnetic-material core and a second conductor part close to a second main face of the magnetic-material core are provided such that the first conductor part is not over the second conductor part in view from a line in a direction normal to the first main face or the second main face of the magnetic-material core. In addition, a coil axis of the coil conductor is orthogonal to the side of the planar conductor.
