Shared antenna arrays with multiple independent tilt
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Apr 25, 2016
filing date -
Feb 20, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

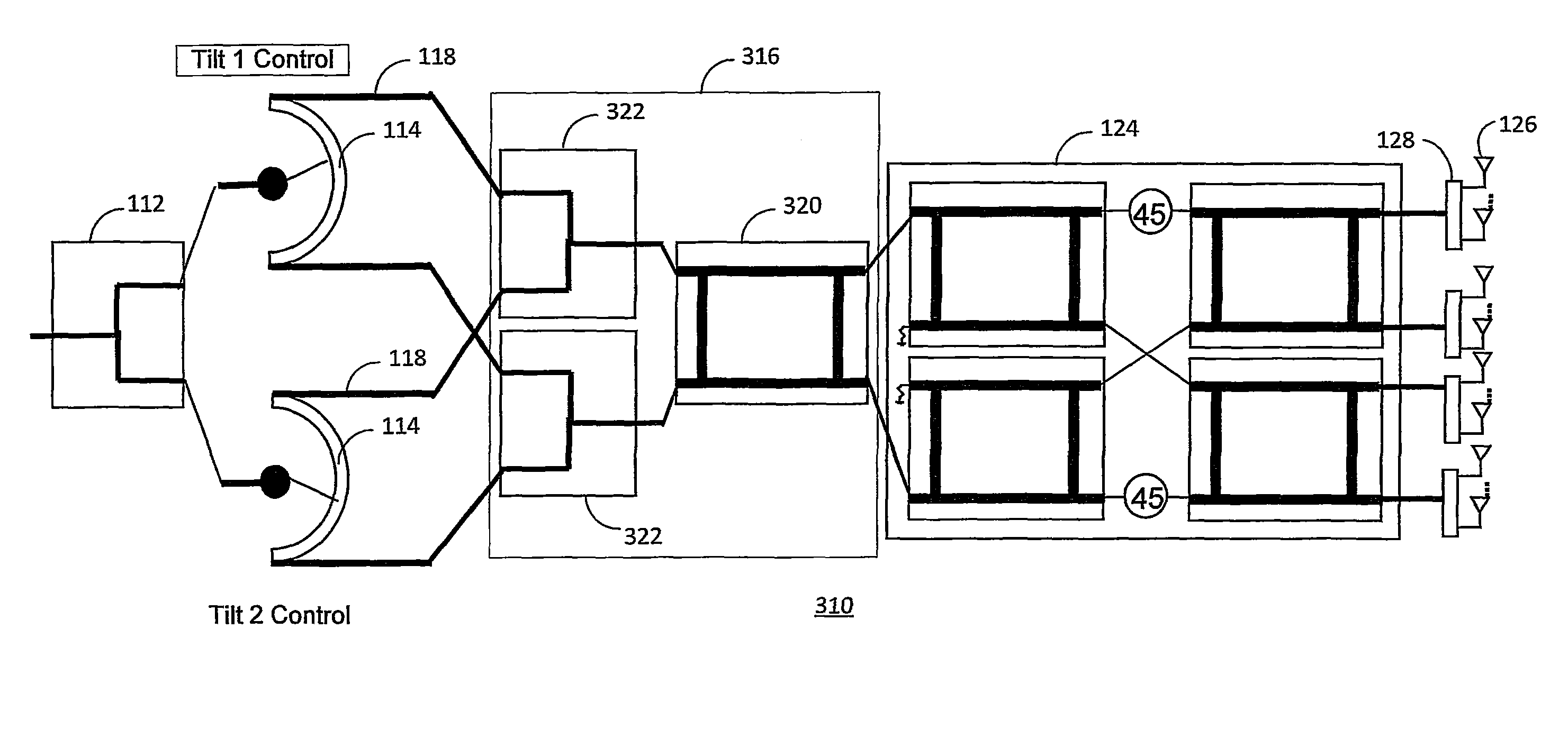

A feed network for use with an antenna array includes at least first and second RF inputs, a combiner network and a beamforming network. In some examples, additional RF inputs are provided. Each RF input corresponds to a sub-band. The first RF input for a first sub-band signal is coupled to a first sub-band parameter control; the second RF input for the second sub-band signal is coupled to a second sub-band parameter control. The combiner network is coupled to the first sub-band parameter control and to the second sub-band parameter control. The combiner network also has at least one output comprising a combination of the first sub-band signal and the second sub-band signal. The beamforming network is coupled to the combiner network and has a plurality of RF outputs. The first and second sub-band parameter controls are independently adjustable. In one example, the beamforming network comprises a Butler matrix.
