Switching device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Feb 6, 2017
filing date -
Mar 9, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

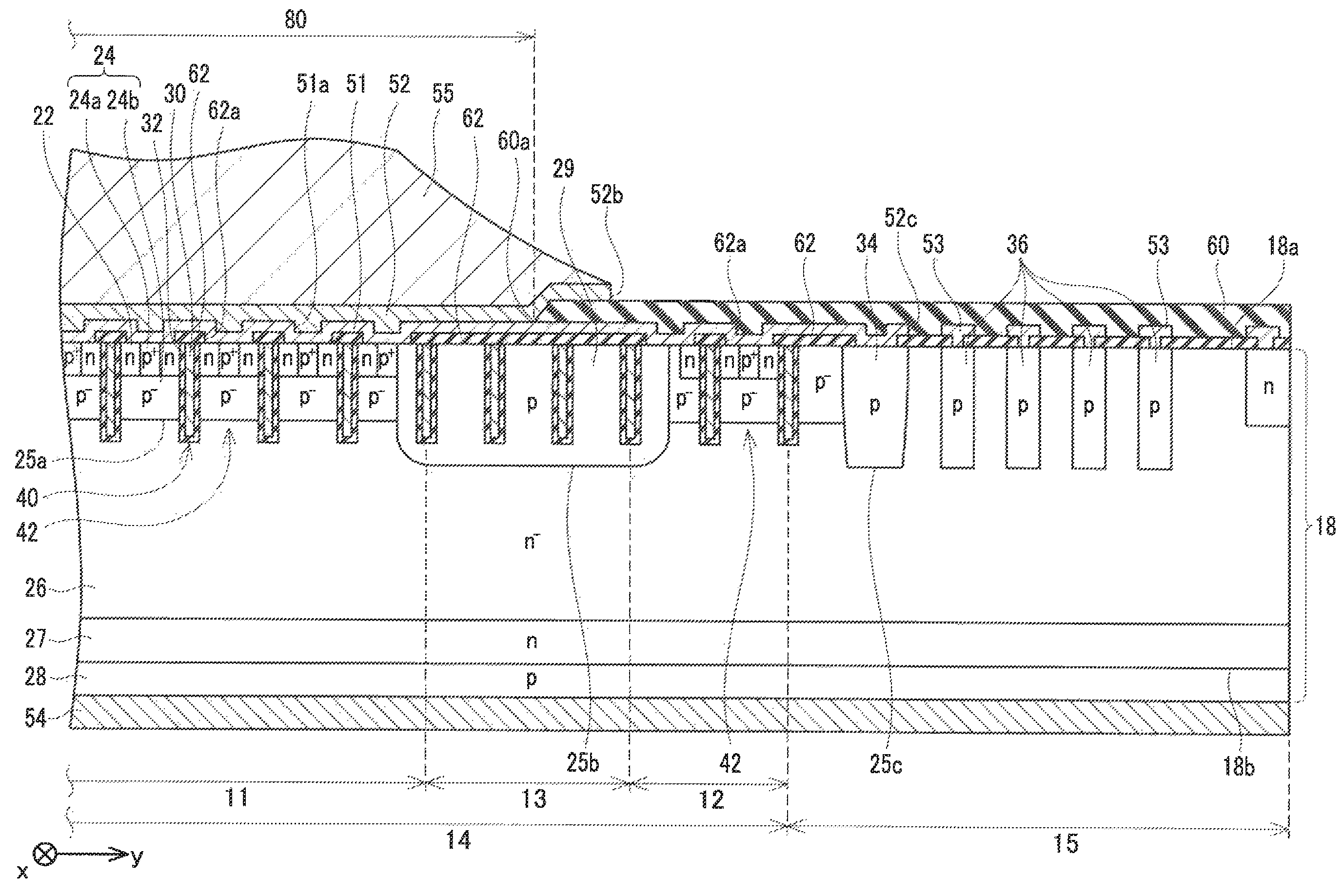

A switching device including a semiconductor substrate including a trench (gate electrode) extending in a mesh shape is provided, and the upper surface of the semiconductor substrate is covered by the interlayer insulating film. Within an element range a contact hole is provided in an interlayer insulating film above each cell region while within a surrounding range an entire upper surface of each cell region is covered by the interlayer insulating film. The first metal layer covers the interlayer insulating film, and has recesses above the contact holes. The insulating protective film covers an outer peripheral side portion of the first metal layer within the surrounding range. The second metal layer covers the first metal layer within an opening of the insulating protective film. Within the surrounding range, a second conductivity-type region extending to below lower ends of the trench and is electrically connected to the body region, is provided.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- H01L Class
- 30754 Applications Filed
- 25260 Patents Issued To-Date
- 82.14 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- H01L Class
- 23.71 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
