High-voltage transistor architectures, processes of forming same, and systems containing same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Mar 30, 2015
filing date -
Aug 18, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

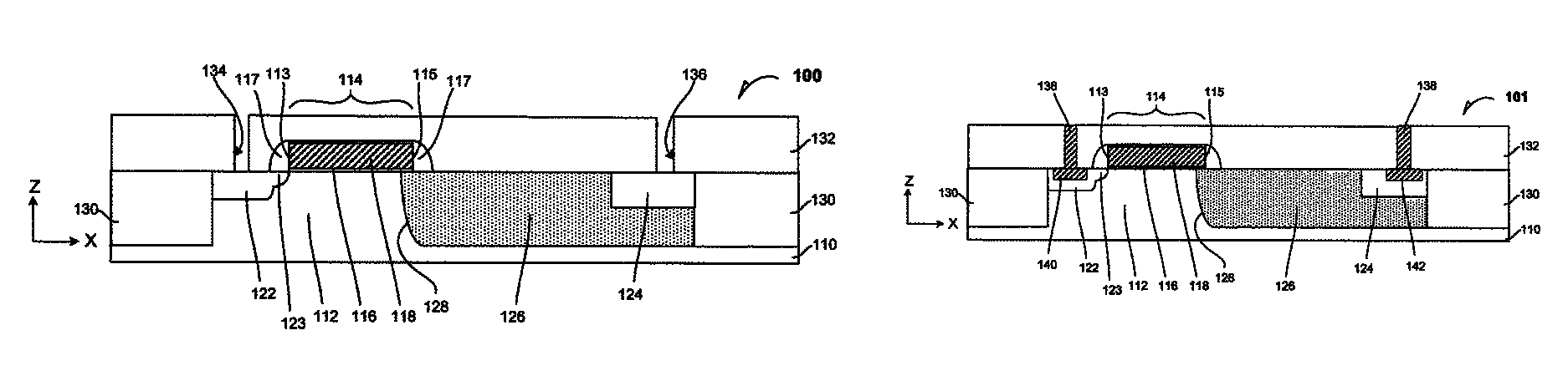

An apparatus includes a first device with a metal gate and a drain well that experiences a series resistance that drops a drain contact voltage from 10 V to 4-6 V at a junction between the drain well and a channel under the gate. The apparatus includes an interlayer dielectric layer (ILD0) disposed above and on the drain well and a salicide drain contact in the drain well. The apparatus also includes a subsequent device that is located in a region different from the first device that operates at a voltage lower than the first device.
