Semiconductor memory cell, semiconductor memory device, and method of manufacturing semiconductor memory device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Aug 4, 2016
filing date -
Aug 4, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

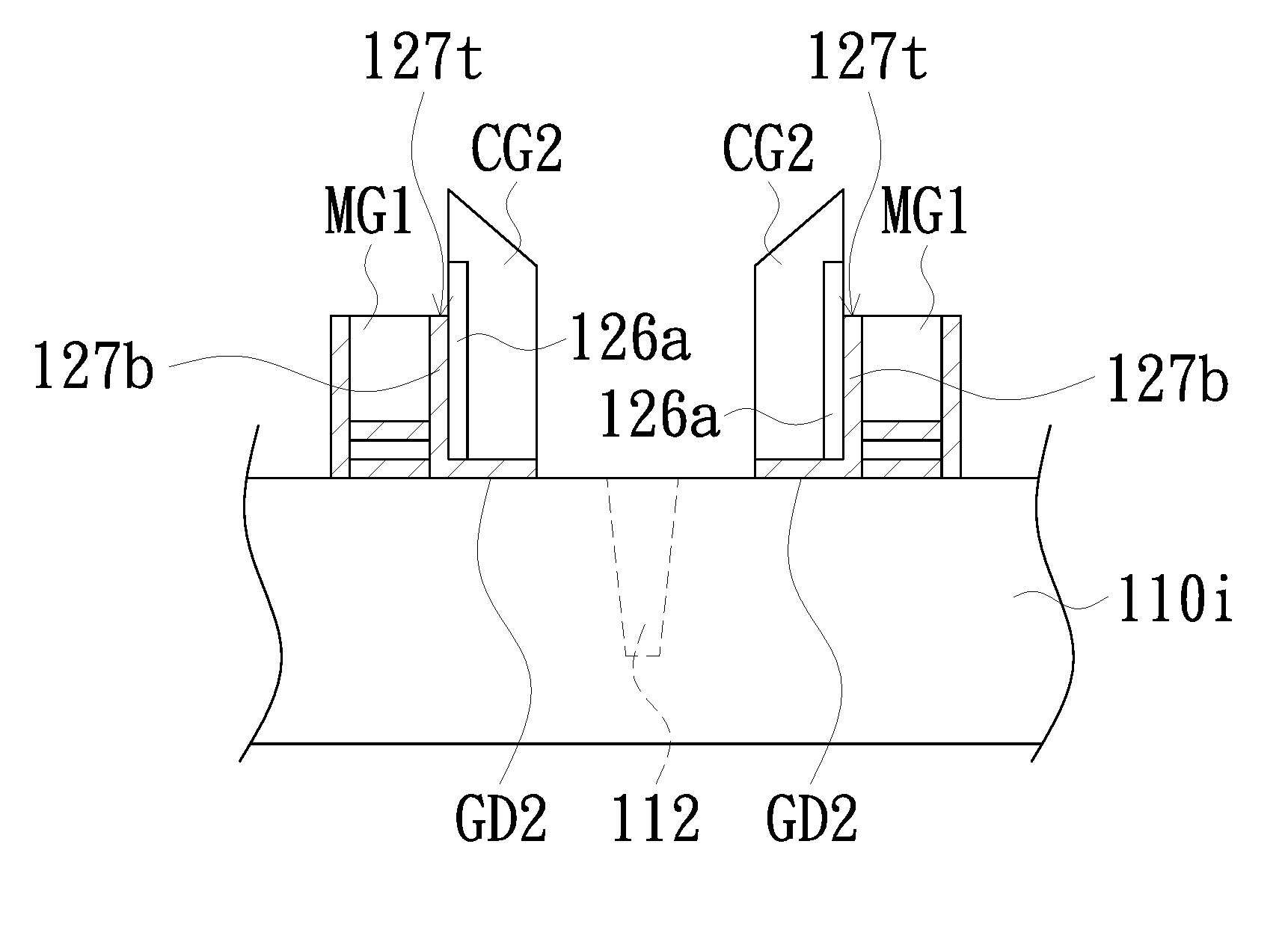

A semiconductor memory device and a semiconductor memory cell thereof are provided. The semiconductor memory device includes a plurality of semiconductor memory cells and an electric isolating structure. Each semiconductor memory cell includes a substrate, a first gate, a second gate, a first gate dielectric layer, a second gate dielectric layer, and a first spacing film. The first gate and the second gate are formed on the substrate. The first gate dielectric layer is between the first gate and the substrate, whereas the second gate dielectric layer is between the second gate and the substrate. The first spacing film having a side and a top edge is between the first gate and the second gate. The second gate covers the side and the top edge. Additionally, a method of manufacturing the semiconductor memory device is also provided.
