Display device with transparent capacitor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Apr 19, 2016
filing date -
Apr 23, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

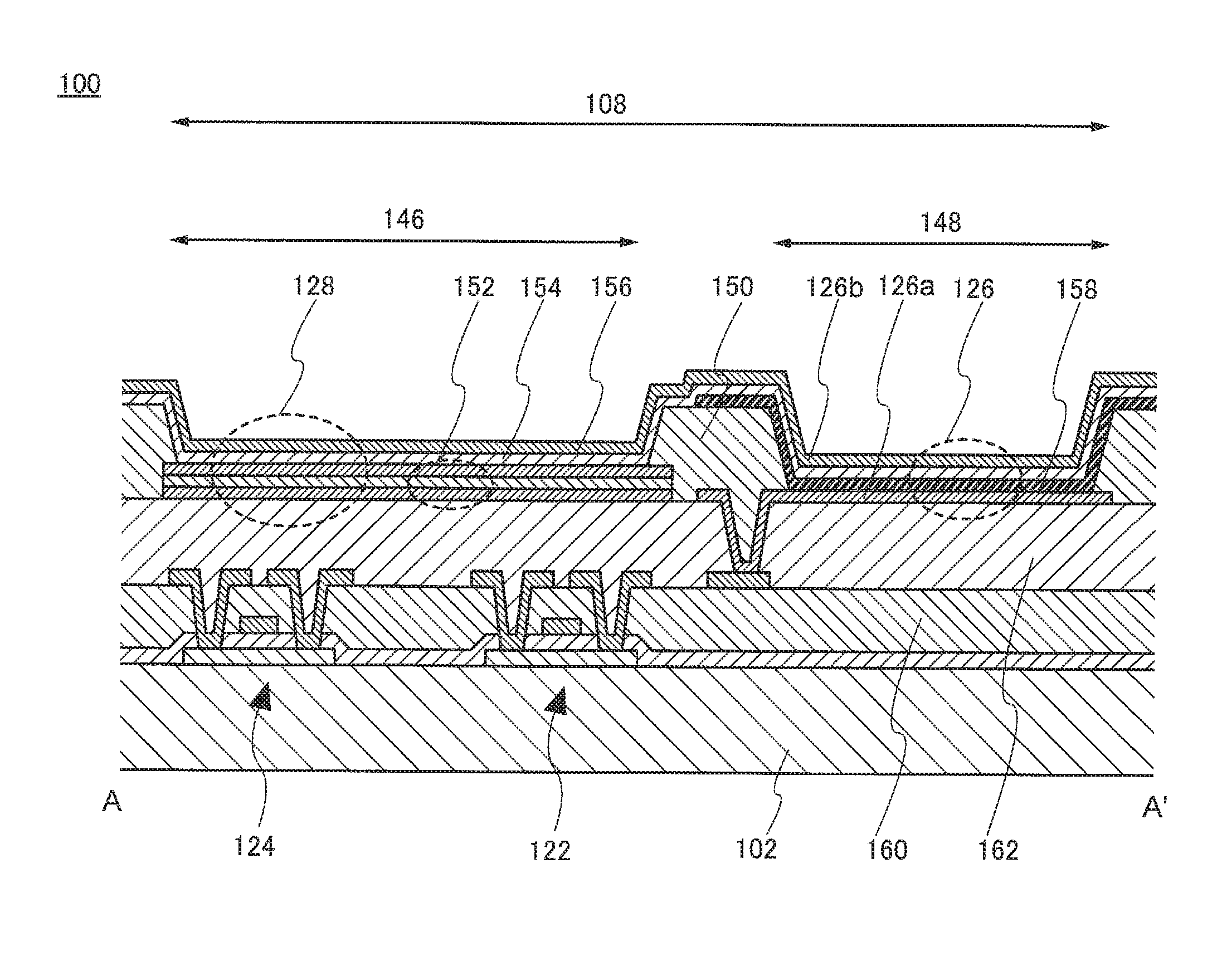

A display device is provided including a plurality of pixels, wherein the plurality of pixels is arranged in a matrix form, wherein each of the plurality of pixels has an emission region and a transparent region, and wherein the emission region has a light-emitting element, and the transparent region has at least a part of a storage capacitor having transparency and is covered with at least one electrode of the storage capacitor, a first electrode covers the plurality of pixels, a light-emitting layer is arranged below the first electrode, a second electrode is arranged below the light-emitting layer, and the storage capacitor includes the first electrode.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- 2016 Application Filing Year
- H01L Class
- 27971 Applications Filed
- 23507 Patents Issued To-Date
- 84.05 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- H01L Class
- 23.71 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
