Systems and methods for testing and packaging a superconducting chip
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Dec 17, 2013
filing date -
Dec 17, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

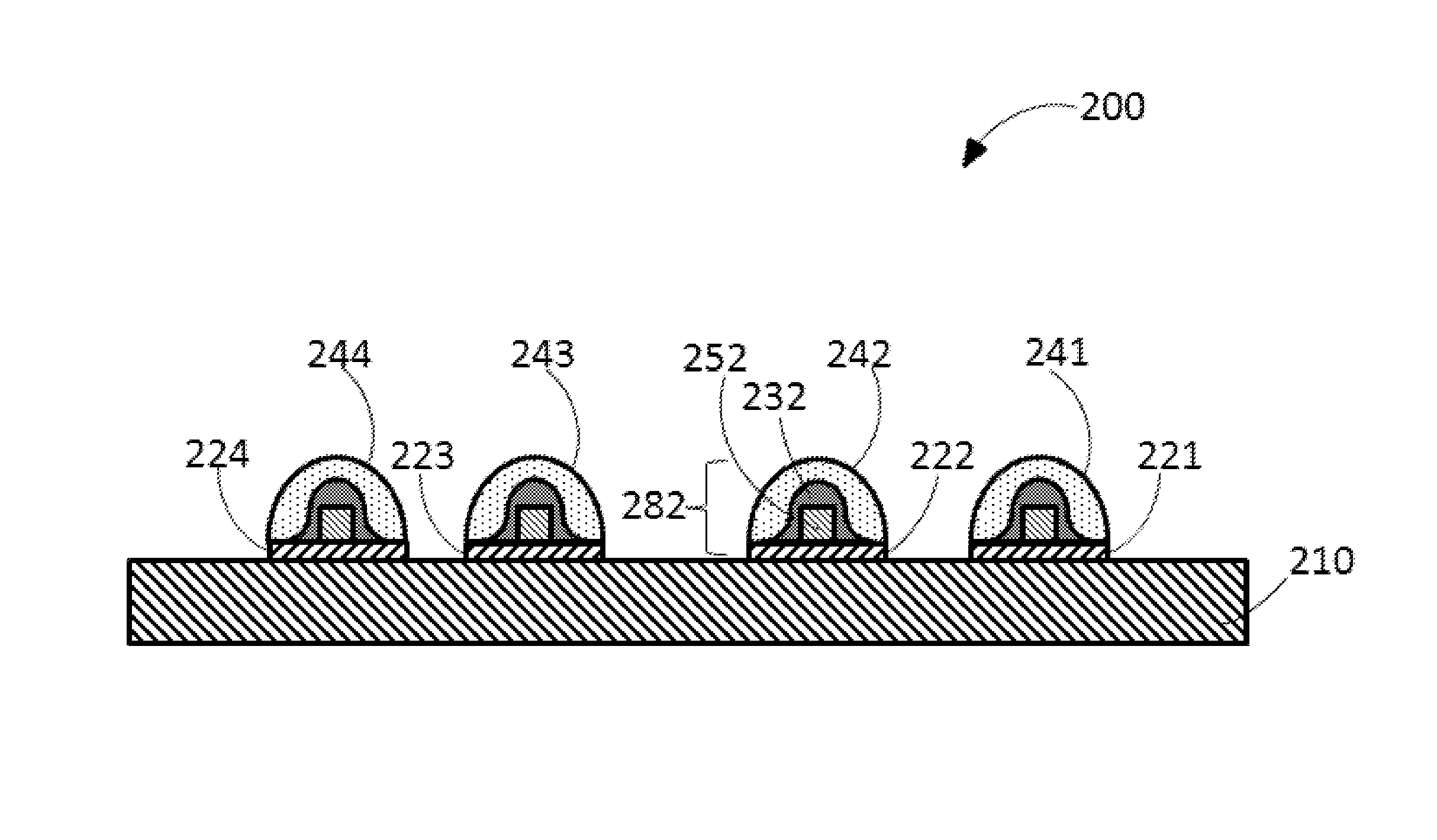

Superconductive interconnection structures providing continuous, uninterrupted superconducting signal paths between a superconducting chip and a superconducting chip carrier are described. The superconductive interconnection structures employ superconducting solder bumps and pillars of Under Bump Metal (“UBM”). The superconductive interconnection structures are employed in a two-stage solder bumping process in which the superconducting chip is first bonded to a testing module for screening and then bonded to a chip packaging module for operation. Either the testing module or the chip packaging module, or both, may include a multi-chip module for carrying multiple superconducting chips simultaneously.
