Image sensor pickup region layout

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 9865630
SERIAL NO

15206061

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

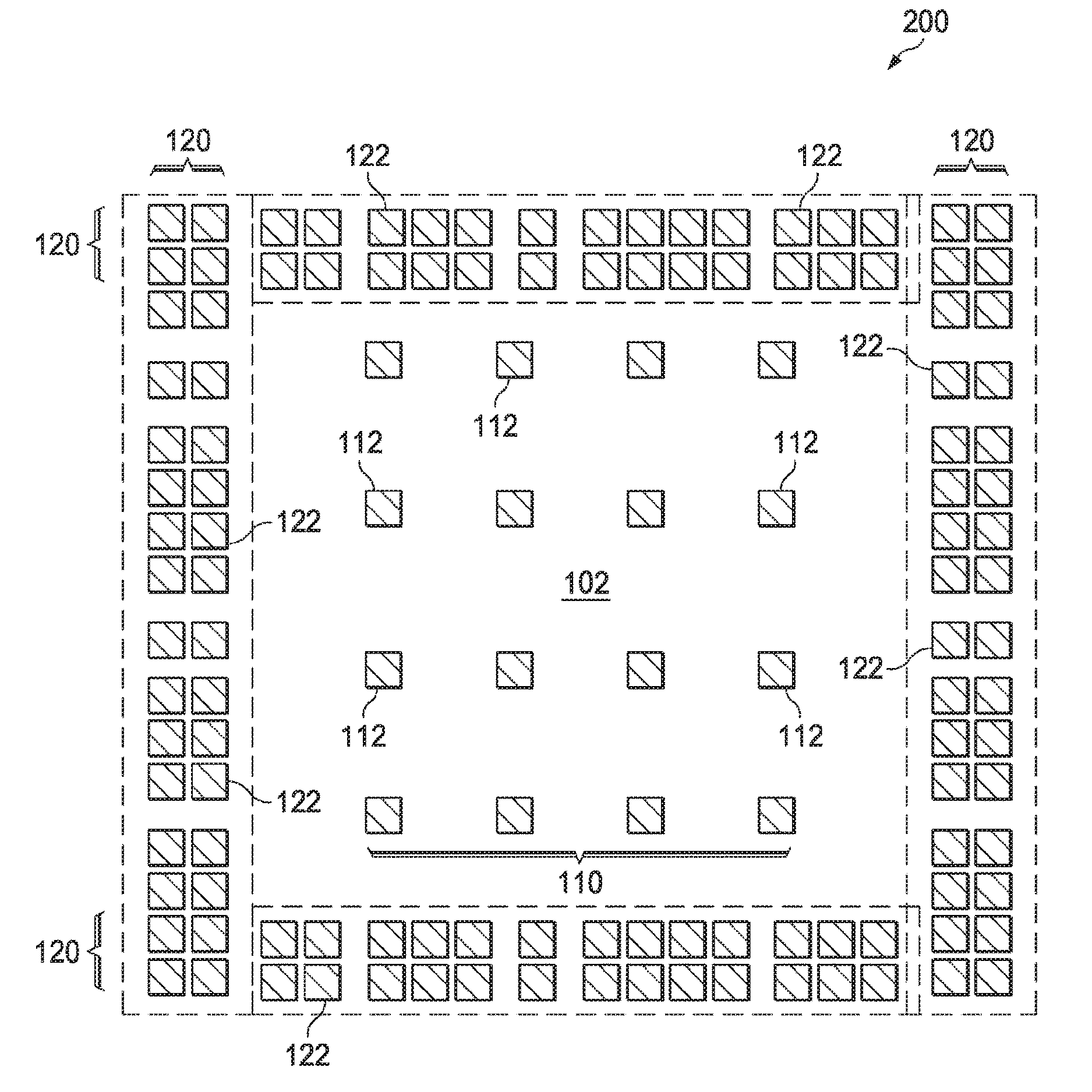

Embodiments of the present disclosure include an image sensor device and methods of forming the same. An embodiment is an image sensor device including a first plurality of pickup regions in a photosensor array area of a substrate, each of first plurality of pickup regions having a first width and a first length, a second plurality of pickup regions in a periphery area of the substrate, the periphery area along at least one side of the photosensor array area, each of second plurality of pickup regions having a second width and a second length.

First Claim

See full text

Other Claims data not available
