Semiconductor device, manufacturing method thereof, and electronic apparatus

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 9865549
SERIAL NO

14505006

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

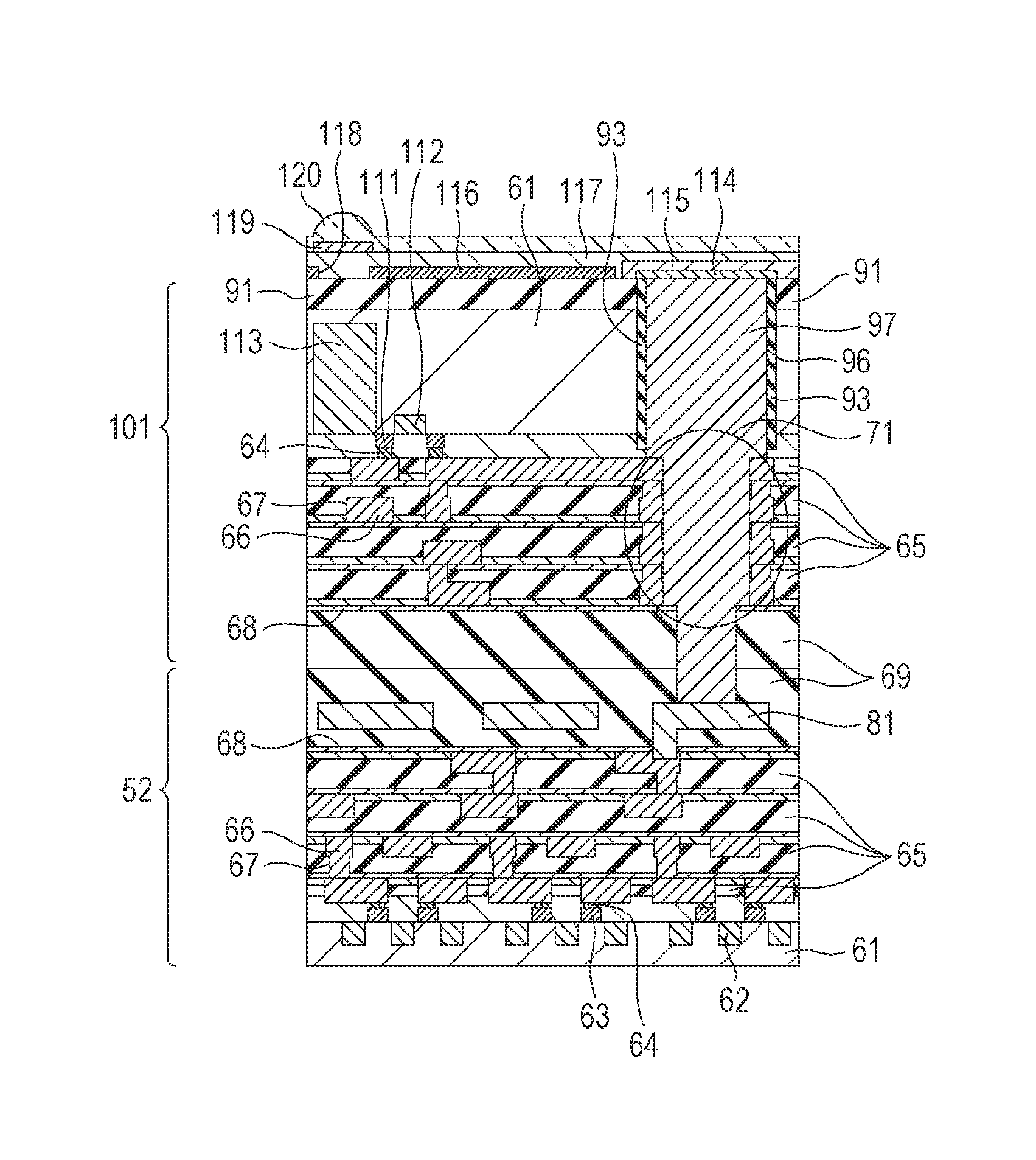

A semiconductor device includes a wiring layer that includes at least one low-dielectric rate interlayer insulating film layer; a guard ring that is formed by placing in series a wire and a via so as to be in contact with a through electrode, in a portion in which the through electrode passing through the wiring layer is formed; and the through electrode that is formed by being buried inside the guard ring.

First Claim

See full text

loading....

Other Claims data not available

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
SONY CORPORATION1-7-1 KONAN MINATO-KU TOKYO 108-0075

International Classification(s)

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Shigetoshi, Takushi Kanagawa, JP 27 55

Cited Art Landscape

Load Citation

Patent Citation Ranking

Forward Cite Landscape

Load Citation

Maintenance Fees

Fee Large entity fee small entity fee micro entity fee due date
7.5 Year Payment $3600.00 $1800.00 $900.00 Jul 9, 2025
11.5 Year Payment $7400.00 $3700.00 $1850.00 Jul 9, 2029
