Semiconductor device and method for fabricating the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Jul 26, 2016
filing date -
Nov 5, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

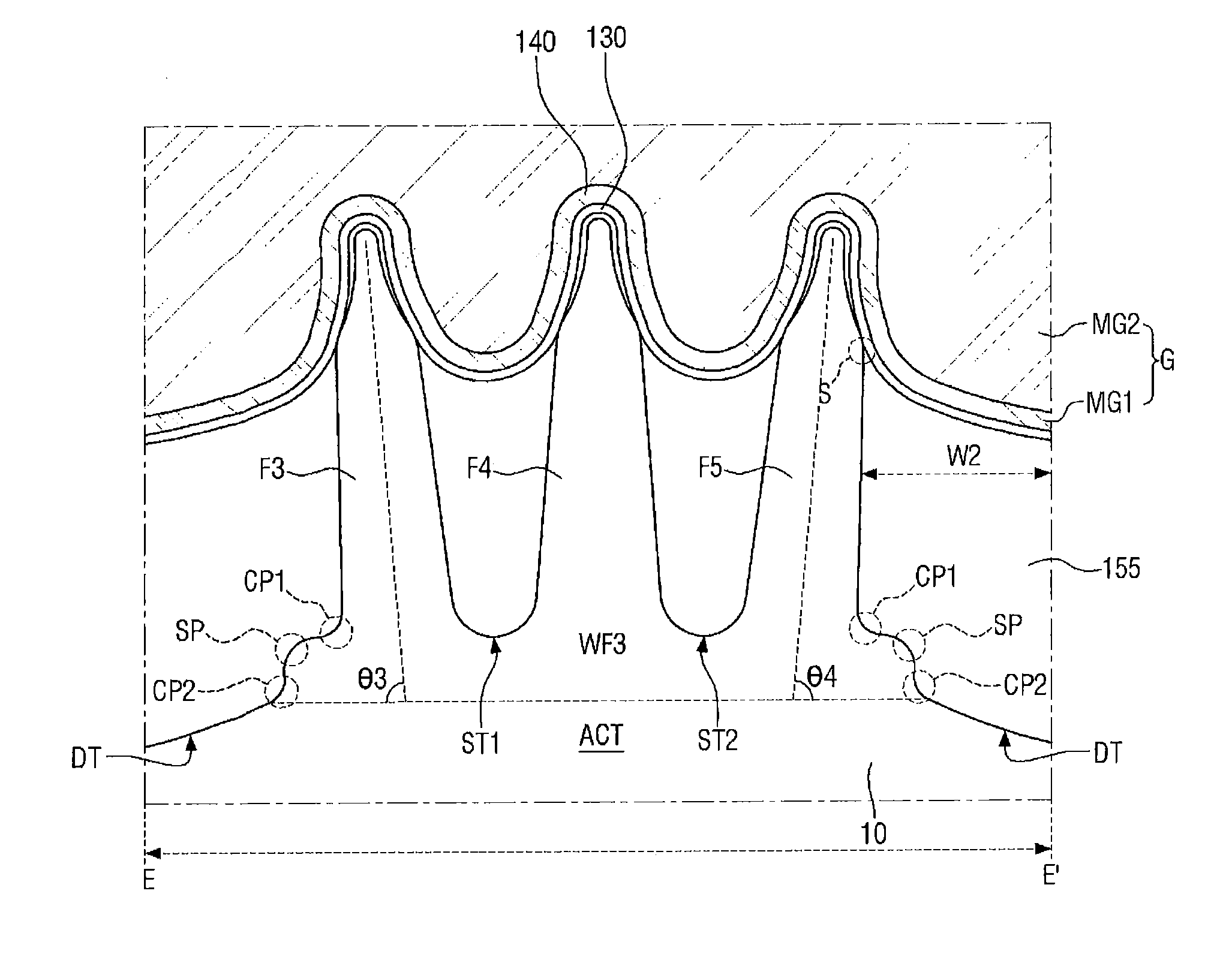

A method of fabricating a semiconductor device includes forming a plurality of mask patterns comprising a real mask pattern and a dummy mask pattern on a substrate, removing the dummy mask pattern and etching the substrate using the real mask pattern as a mask to form a first trench, a second trench, and a fin-type pattern defined by the first trench and the second trench. The second trench contacting the fin-type pattern comprises a smooth pattern which is convex and positioned between a bottom surface and a side surface of the second trench, a first concave portion which is positioned between the side surface of the second trench and the smooth pattern, and a second concave portion which is positioned between the convex portion and the bottom surface of the second trench.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- H01L Class
- 27971 Applications Filed
- 23507 Patents Issued To-Date
- 84.05 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H01L Class
- 23.71 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
