Method of positioning cutting member to semiconductor chip with grooves
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Oct 6, 2015
filing date -
Dec 15, 2014
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

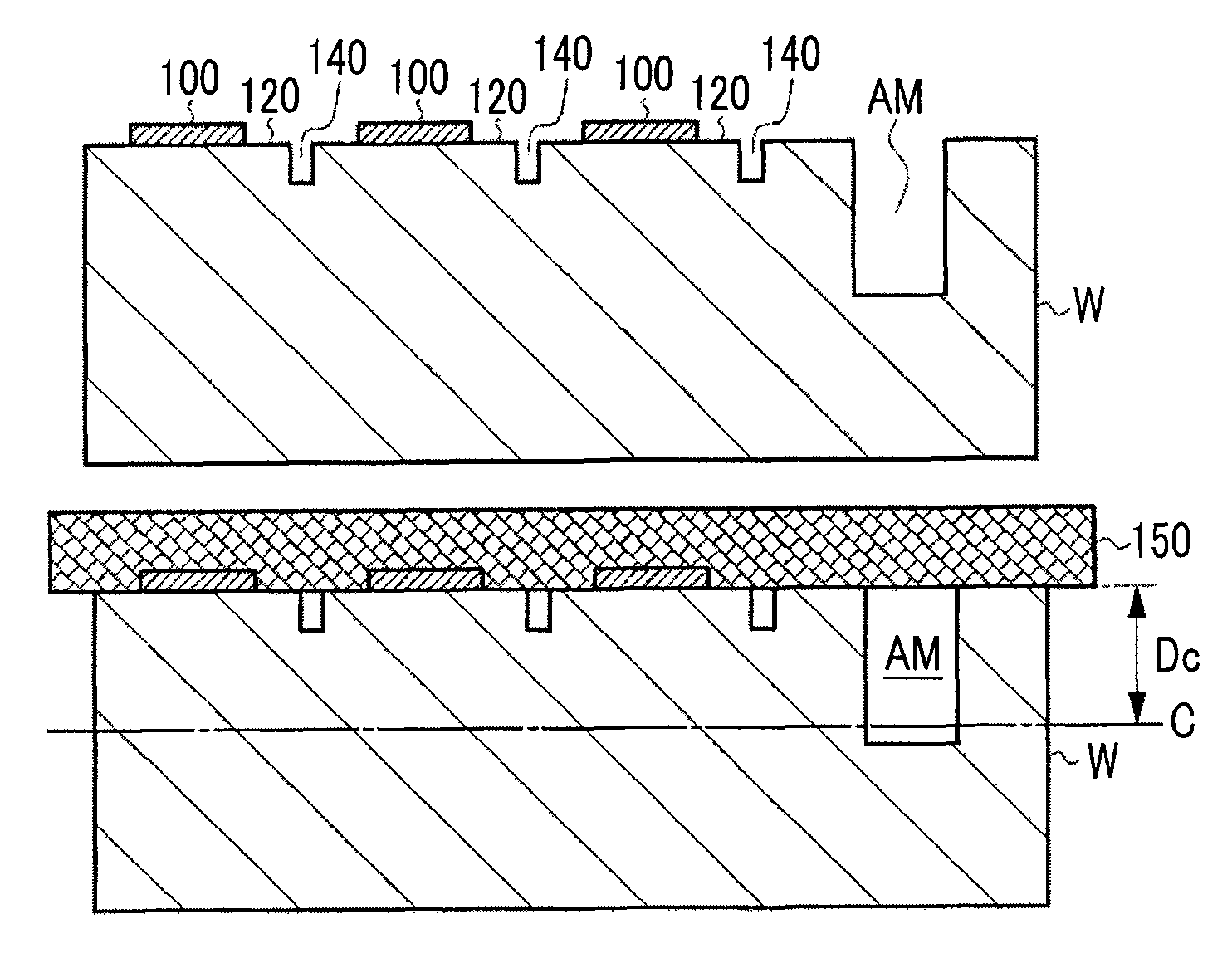

Provided is a method for manufacturing a semiconductor chip including forming a groove on a front surface side along a cut area of a substrate, and a concave portion deeper than the groove on the front surface side as a positioning mark for a cutting member that performs cutting from a back surface of the substrate along the groove on the front surface side, thinning the substrate so as to reach the concave portion and not reach the groove on the front surface side, in the back surface of the substrate, positioning the cutting member from the back surface of the substrate by using the concave portion exposed on the back surface of the substrate as the positioning mark, and performing cutting from the back surface side of the substrate toward the groove on the front surface side of the substrate by using the positioned cutting member.
