Amplifier
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
May 13, 2015
filing date -
Mar 15, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

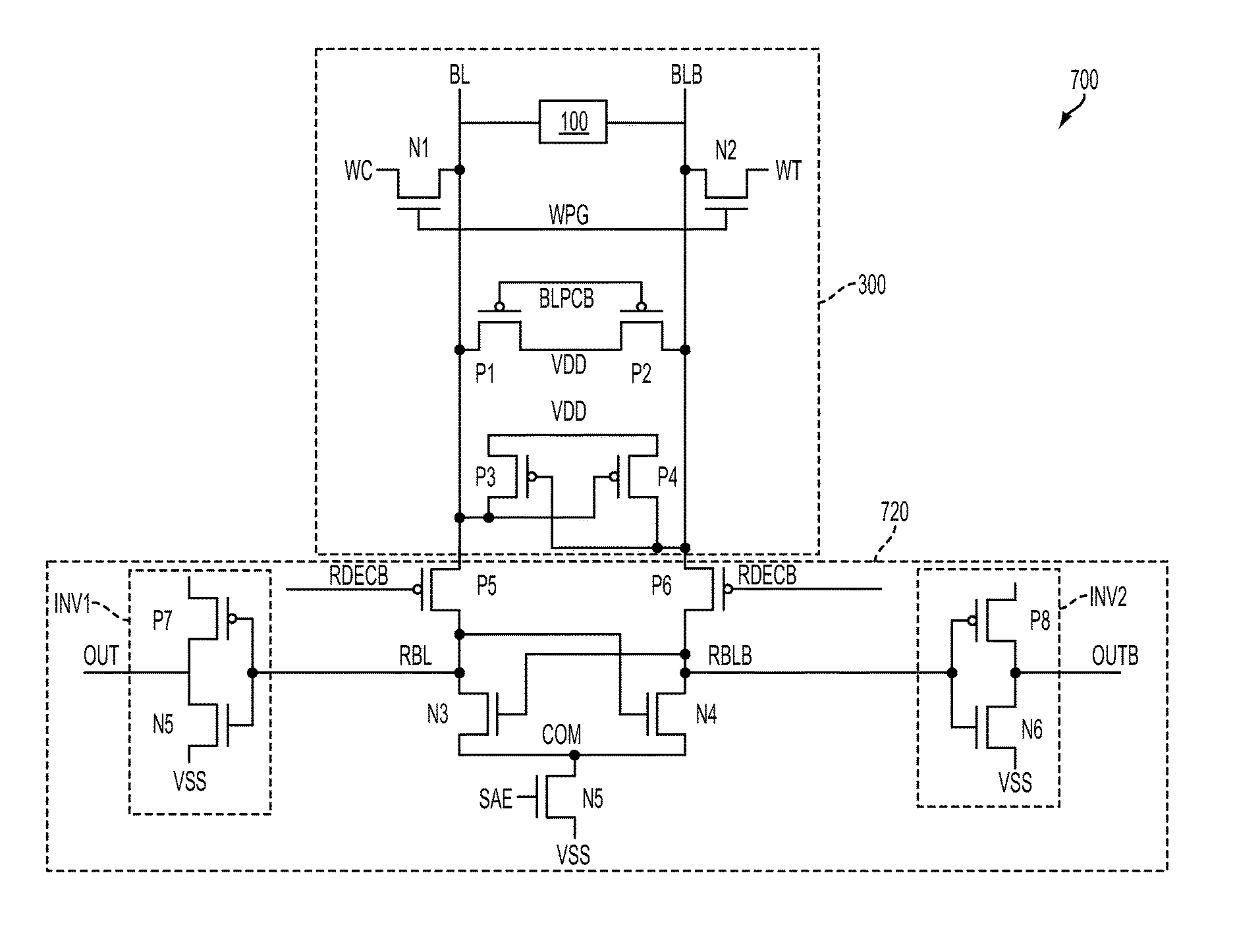

A circuit includes a plurality of first circuits, a selection circuit, and a second circuit. The selection circuit is configured to selectively couple a first circuit of the plurality of first circuits with the second circuit. The first circuit includes a first data line and a second data line; and a pair of cross-coupled transistors of a first type coupled with the first data line and the second data line. The second circuit includes a first switching circuit and a second switching circuit; and a pair of cross coupled transistors of a second type different from the first type. The pair of cross-coupled transistors of the first circuit and the pair of cross-coupled transistors of the second circuit are configured as part of a sense amplifier when the first switching circuit and the second switching circuit are turned on.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G11C Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
