Shift register unit, gate driving circuit and display device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Apr 2, 2014
filing date -
Dec 20, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

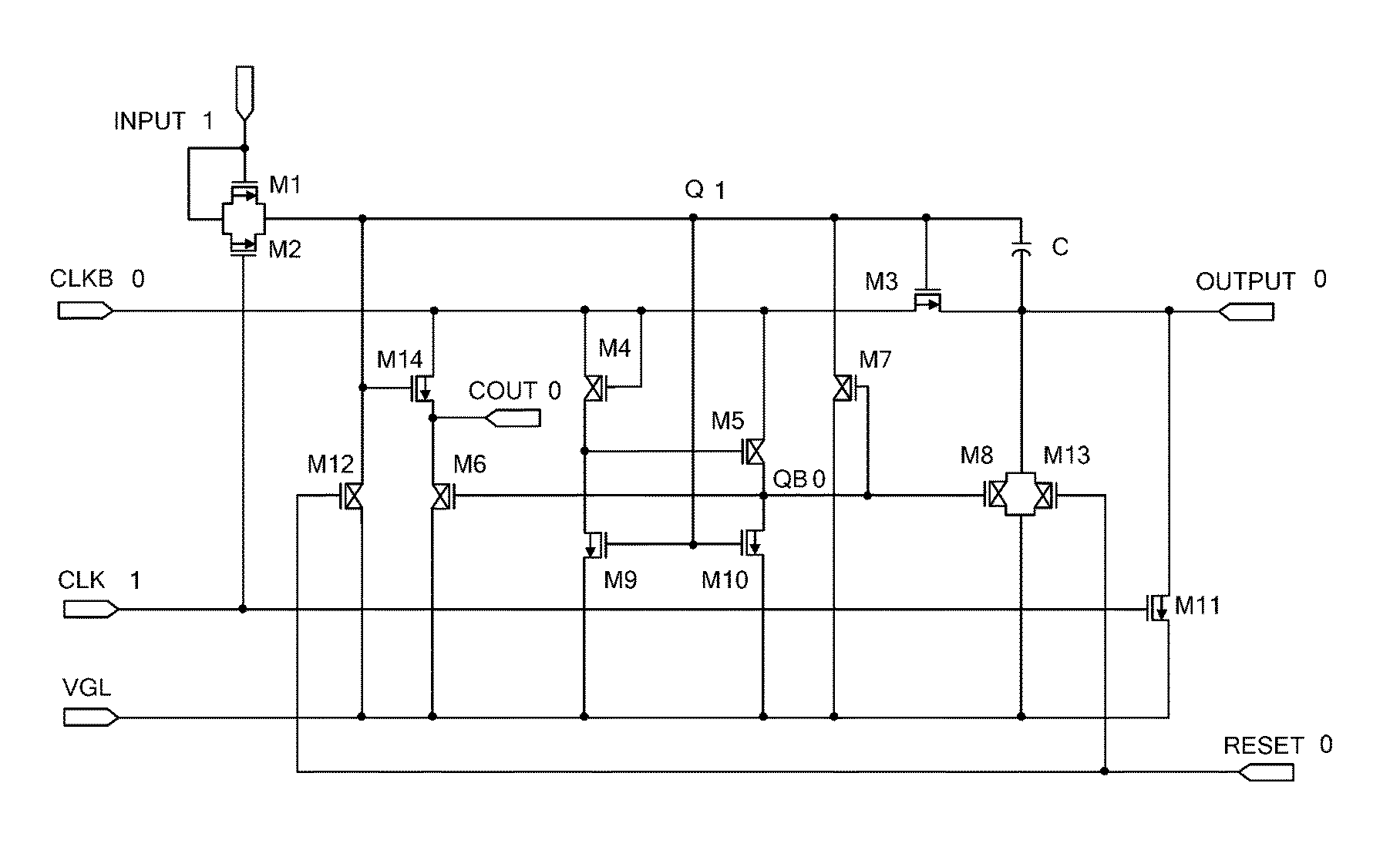

There are provided a shift register unit, a gate driving circuit and a display device, which enable gate lines in non-output rows to remain in the state of no signal outputting. The shift register unit comprises an input module (10), a pull-up module (20), a pull-down control module (30), a first pull-down module (31), a second pull-down module (40) and a reset module (50). In the non-output time, the first pull-down module and the second pull-down module pull down the output voltages of the pull-up modules connected thereto to a low level alternately, thereby enabling gate lines in non-output rows to remain in the state of no signal outputting.
