Circuit and method for eliminating shutdown after-image, and display device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Sep 13, 2013
filing date -
Jul 23, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

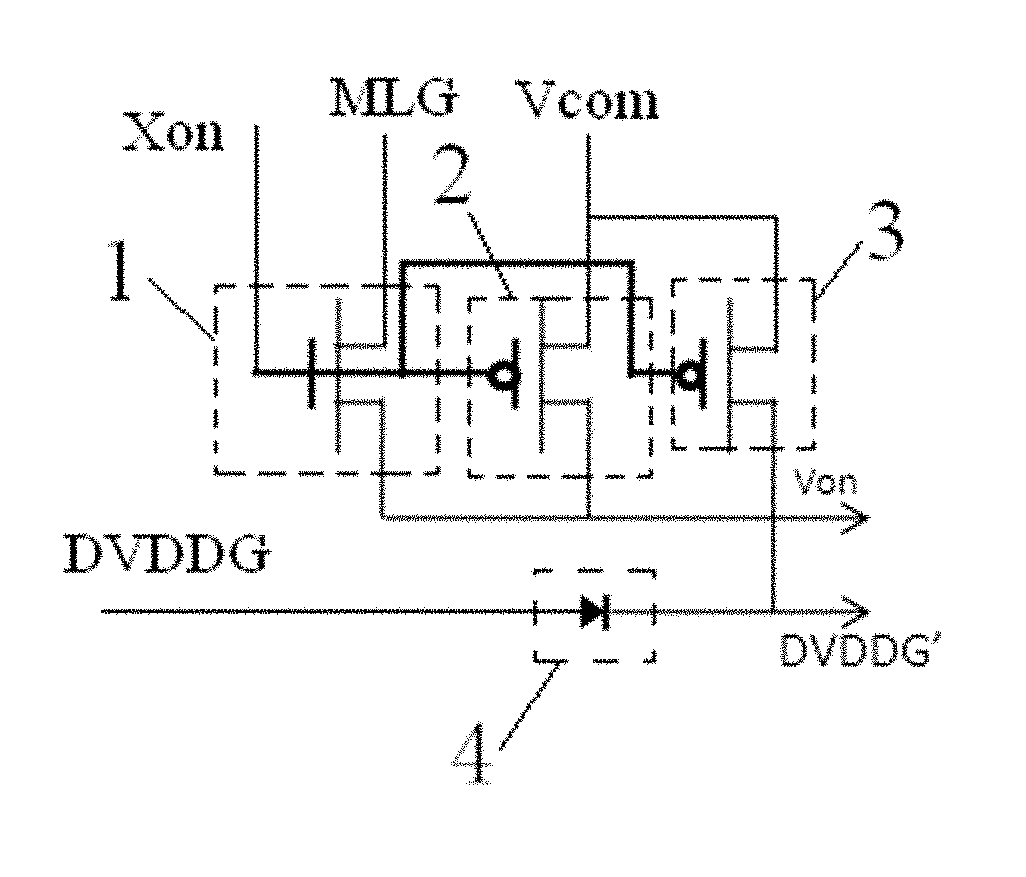

The present invention relates to the field of display technology, and provides a circuit and a method for eliminating a shutdown after-image, and a display device. The circuit for eliminating the shutdown after-image in a liquid crystal panel comprises a control module configured to apply a common voltage of a liquid crystal panel to a gate line of the liquid crystal panel under the control of a shutdown signal when the liquid crystal panel is shut down. According to the present invention, it is able to eliminate the shutdown after-image and prevent the occurrence of large shutdown current.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G09G Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
