Network processor having multicasting protocol
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Jul 27, 2015
filing date -
Mar 8, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

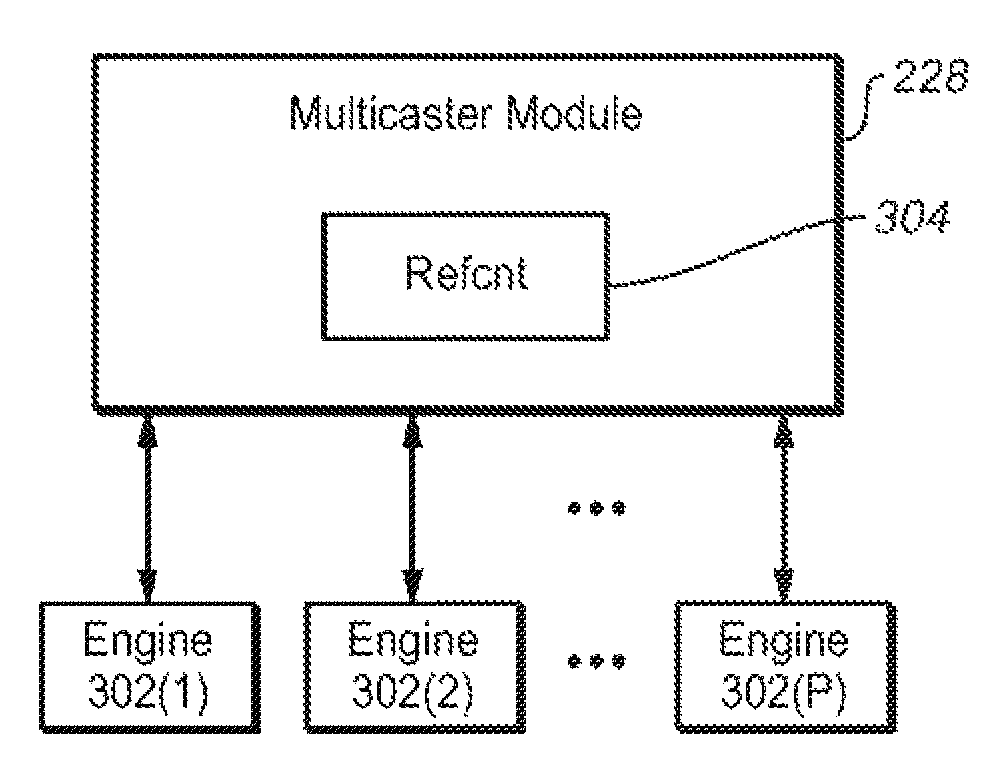

An network processor is described that is configured to multicast multiple data packets to one or more engines. In one or more implementations, the network processor includes an input/output adapter configured to parse a plurality of tasks. The input/output adapter includes a multicast module configured to determine a reference count value based upon a maximum multicast value of the plurality of tasks. The input/output adapter is also configured to set a reference count decrement value within the control data portion of the plurality of tasks. The reference count decrement value is based upon the maximum multicast value. The input/output adapter is also configured to decrement the reference count value by a corresponding reference count decrement value upon receiving an indication from an engine.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| US | B2 | US9094219 | Mar 12, 2013 |
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H04L Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
