Cartridge and image forming apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Jun 10, 2016
filing date -
Oct 1, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

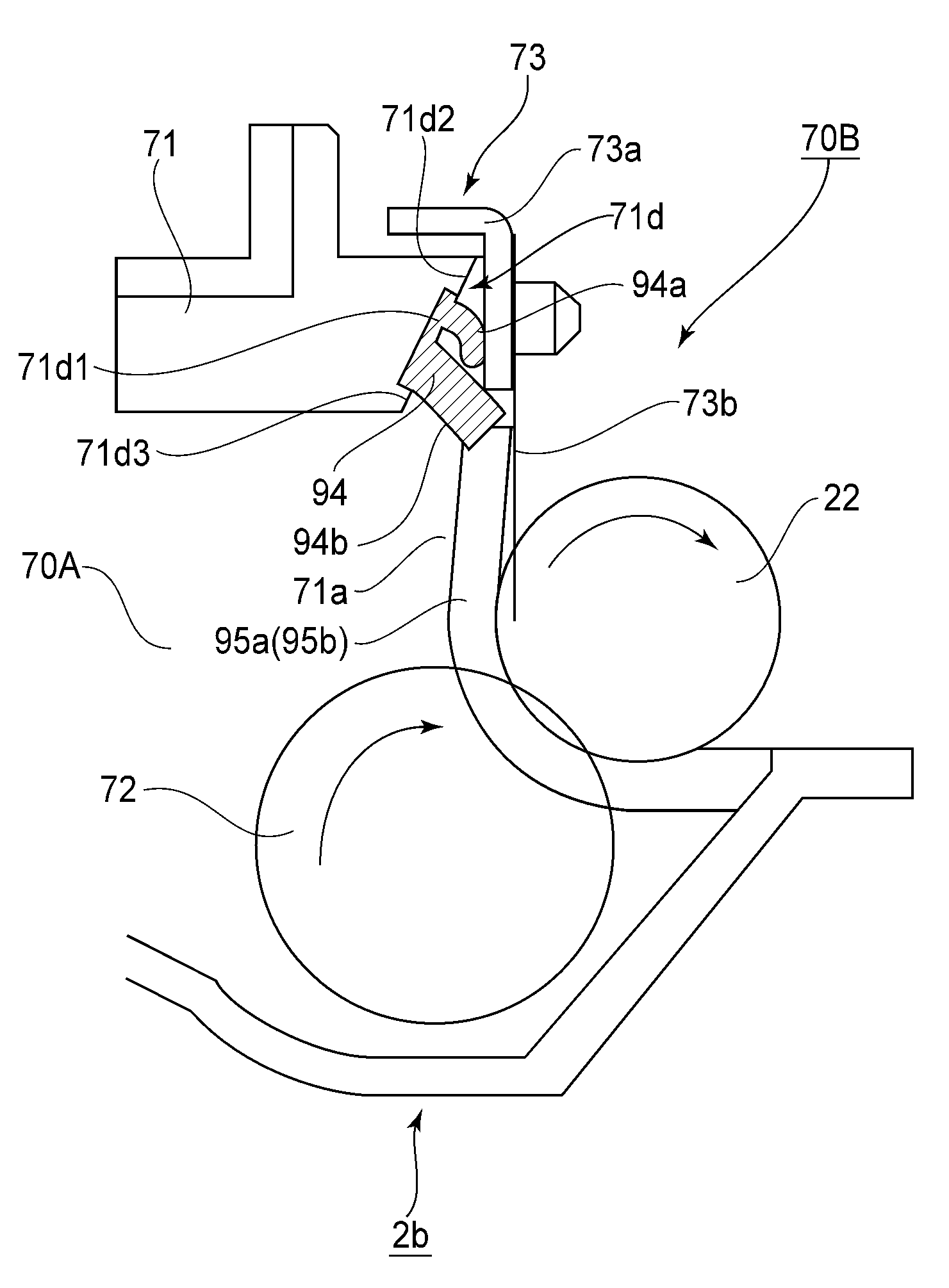

A cartridge detachably mountable to a main assembly of an image forming apparatus includes: a frame; an accommodating portion, constituted by the frame, for accommodating a developer; a seal portion for preventing the developer from being leaking out from the accommodating portion, wherein the seal portion is formed by injection molding at a seal forming portion provided on the frame and is projected from the seal forming portion; and a sprue which is formed integrally with the seal portion by a resin material remaining in a path for permitting flow of the resin material melted when the seal portion is formed by the injection molding and which is projected from the frame in a position different from a position of the seal portion so as to be higher than the seal portion on the basis of the frame.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- G03G Class
- 2954 Applications Filed
- 2640 Patents Issued To-Date
- 89.38 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G03G Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
