Outer cover and image forming apparatus comprising the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Aug 11, 2016
filing date -
Aug 27, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

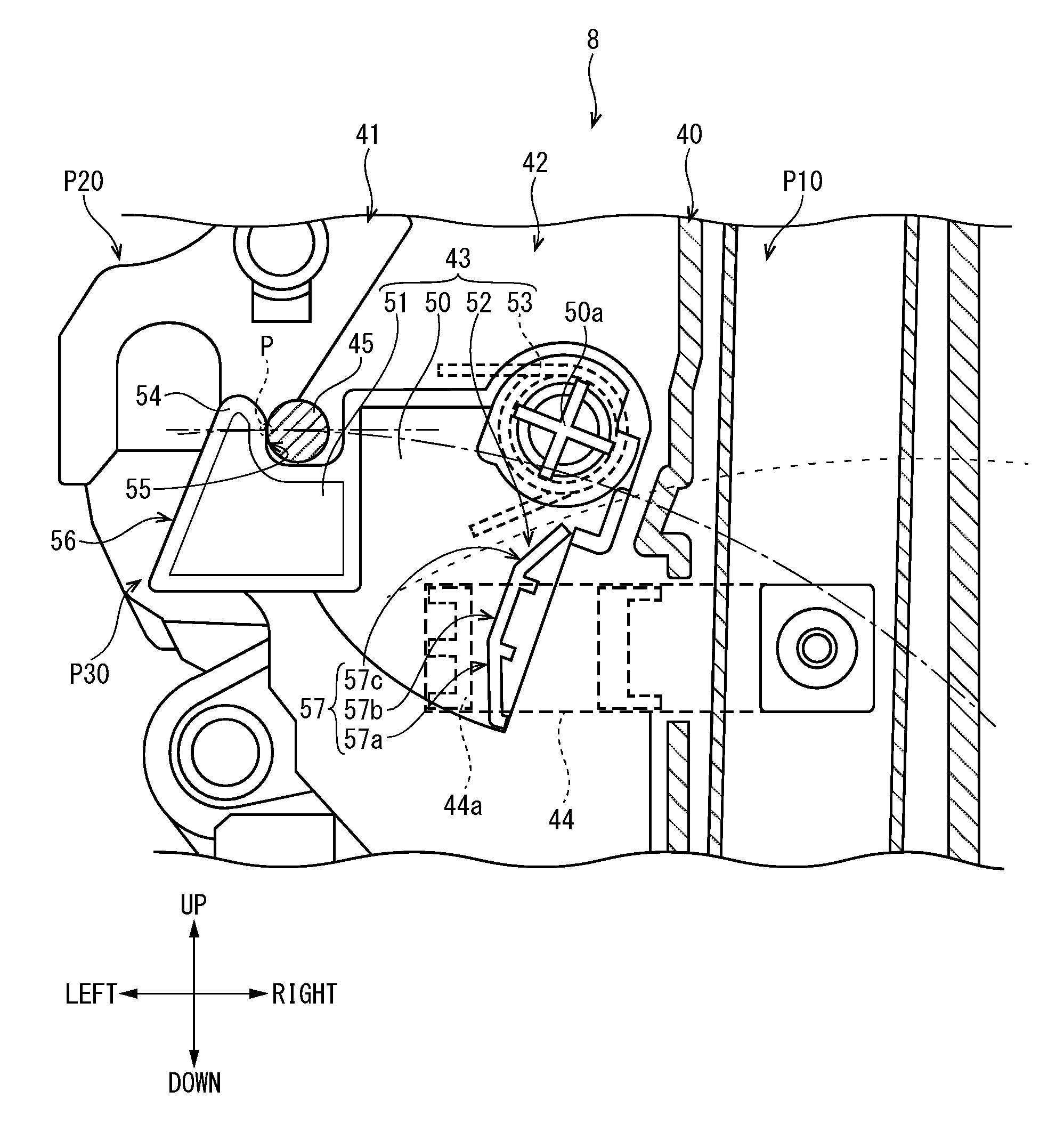

An image forming apparatus includes an apparatus body, an outer cover, a conveyance unit, a movable roller, and an interlock mechanism. The outer cover is provided turnably between an outer closing position forming one surface of the apparatus body and an outer opening position in which the one surface of the apparatus body is set openable. The conveyance unit is provided turnably between an inner closing position in which an inside of the apparatus body is set closable and an inner opening position in which the inside of the apparatus body is set openable. The movable roller is pressed by a fixed roller pivotally supported inside of the apparatus body when the conveyance unit is displaced to the inner closing position. The interlock mechanism interlocks an operation of opening the outer cover with an operation of opening the conveyance unit.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- G03G Class
- 2954 Applications Filed
- 2640 Patents Issued To-Date
- 89.38 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- G03G Class
- 23.29 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
