Image forming apparatus including a power supply for forming an image on a recording material
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Mar 17, 2015
filing date -
Mar 20, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

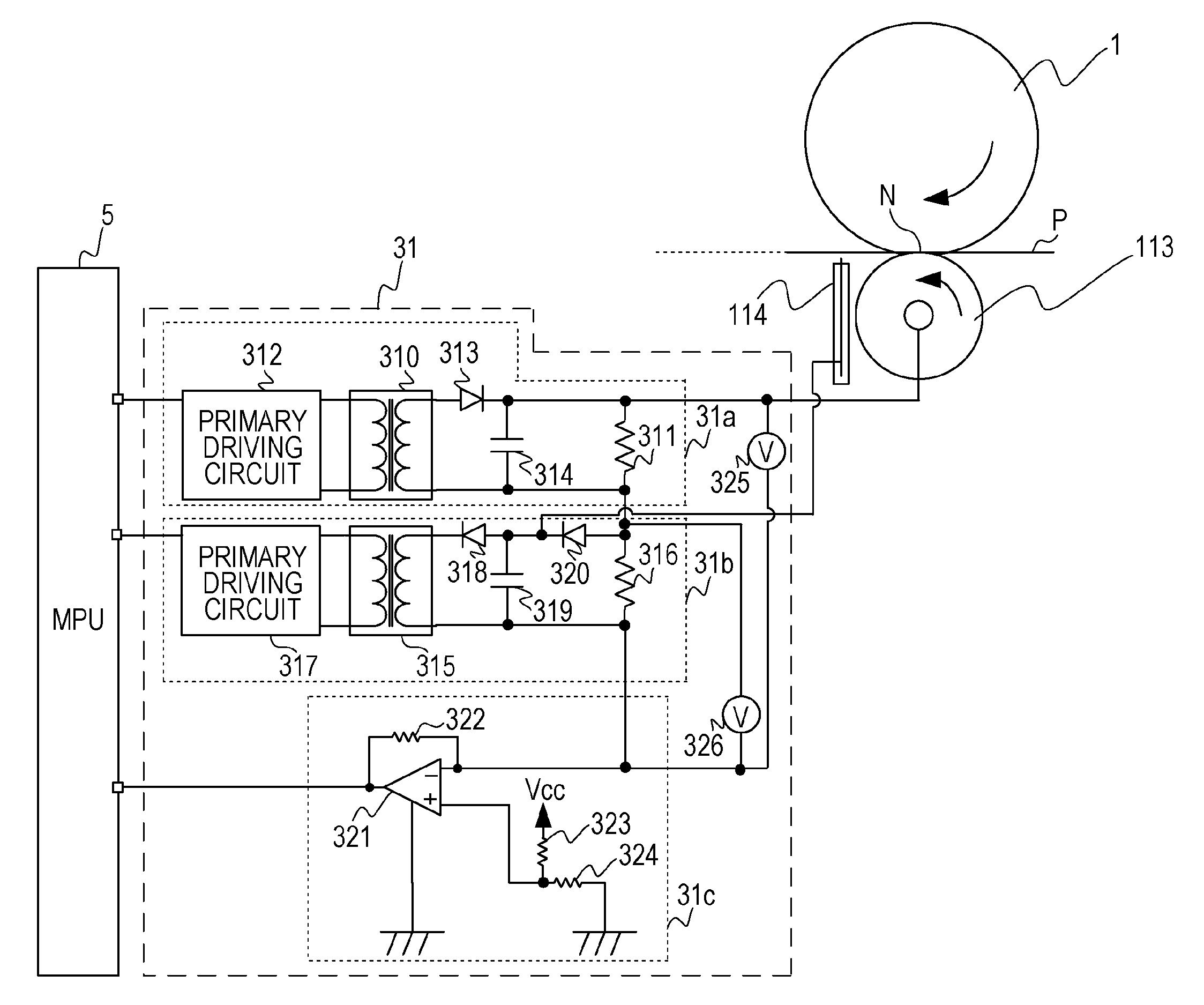

An imaging forming apparatus includes a positive high-voltage circuit that generates voltage having a positive polarity, a negative high-voltage circuit connected in series with the positive high-voltage circuit and generates voltage having a negative polarity, a transfer roller to which the voltage generated by the positive high-voltage circuit or the negative high-voltage circuit is supplied, neutralizing pins to which the voltage generated by the negative high-voltage circuit is supplied, a current detection circuit that detects current flowing into the transfer roller, and a diode connected between the transfer roller and the neutralizing pins and that separates a path for the current flowing into the transfer roller and a path for current flowing into the neutralizing pins from each other.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- H02M Class
- 2758 Applications Filed
- 2286 Patents Issued To-Date
- 82.89 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- H02M Class
- 19.31 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
