Image forming apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Oct 17, 2016
filing date -
Nov 17, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

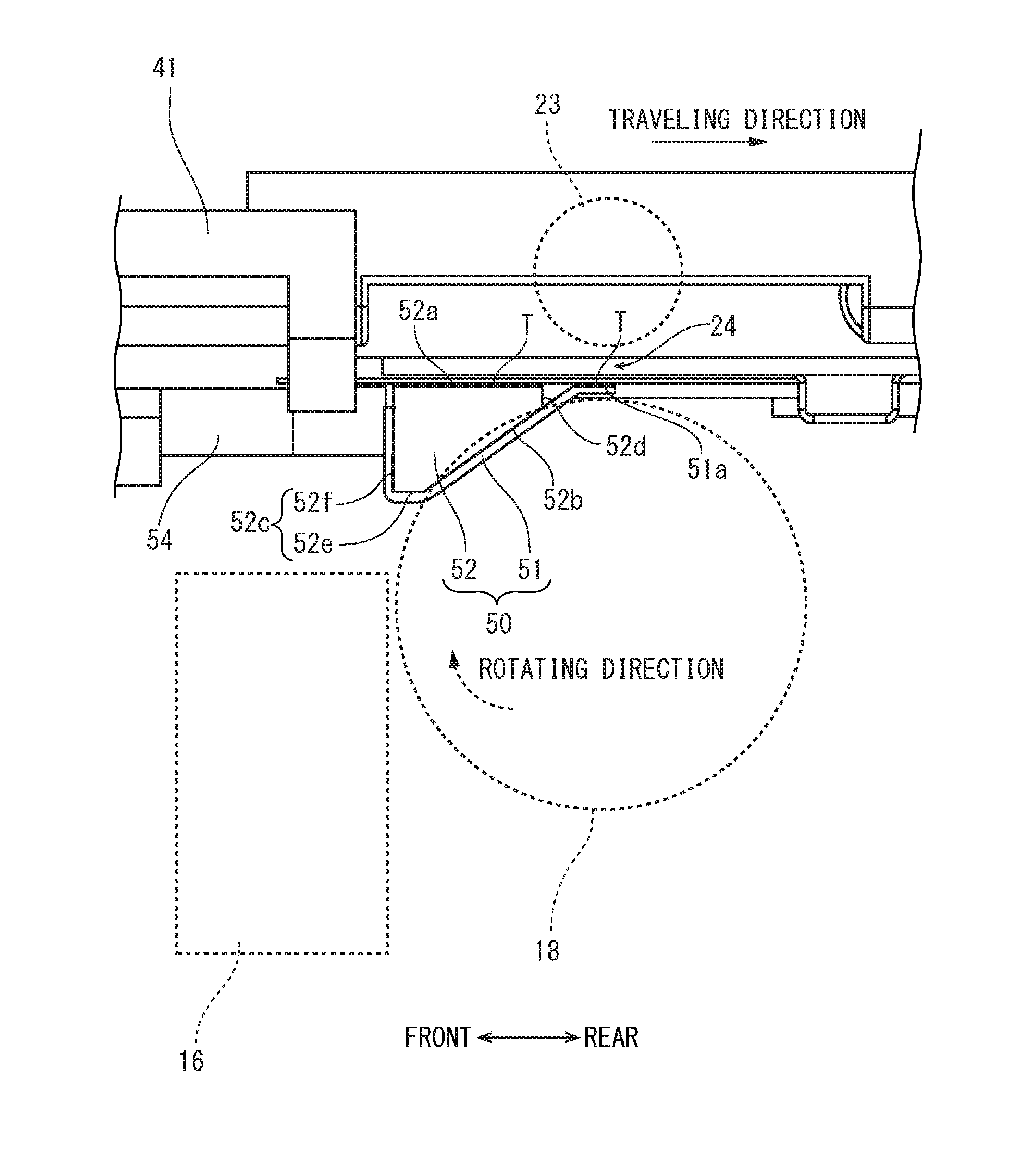

An image forming apparatus includes a rotatable image carrier, a development device and a seal member. The seal member is provided on a downstream side in a rotating direction of the image carrier beyond the development device. The seal member is configured to prevent toner from leaking into a downstream side space in the rotating direction through toner image non-forming areas. The seal member has an elastic member and a slide member. The elastic member has an opposed surface and an end surface. The opposed surface faces the toner image non-forming area. The end surface goes around into a direction separating from the development device from an upstream side end of the opposed surface in the rotating direction. The slide member is provided along the opposed surface and the end surface. The slide member is configured to come in contact with the toner image non-forming area.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- G03G Class
- 2954 Applications Filed
- 2640 Patents Issued To-Date
- 89.38 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G03G Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
