Waveguide for an electro-optic capacitive modulator
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Apr 12, 2016
filing date -
Apr 13, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

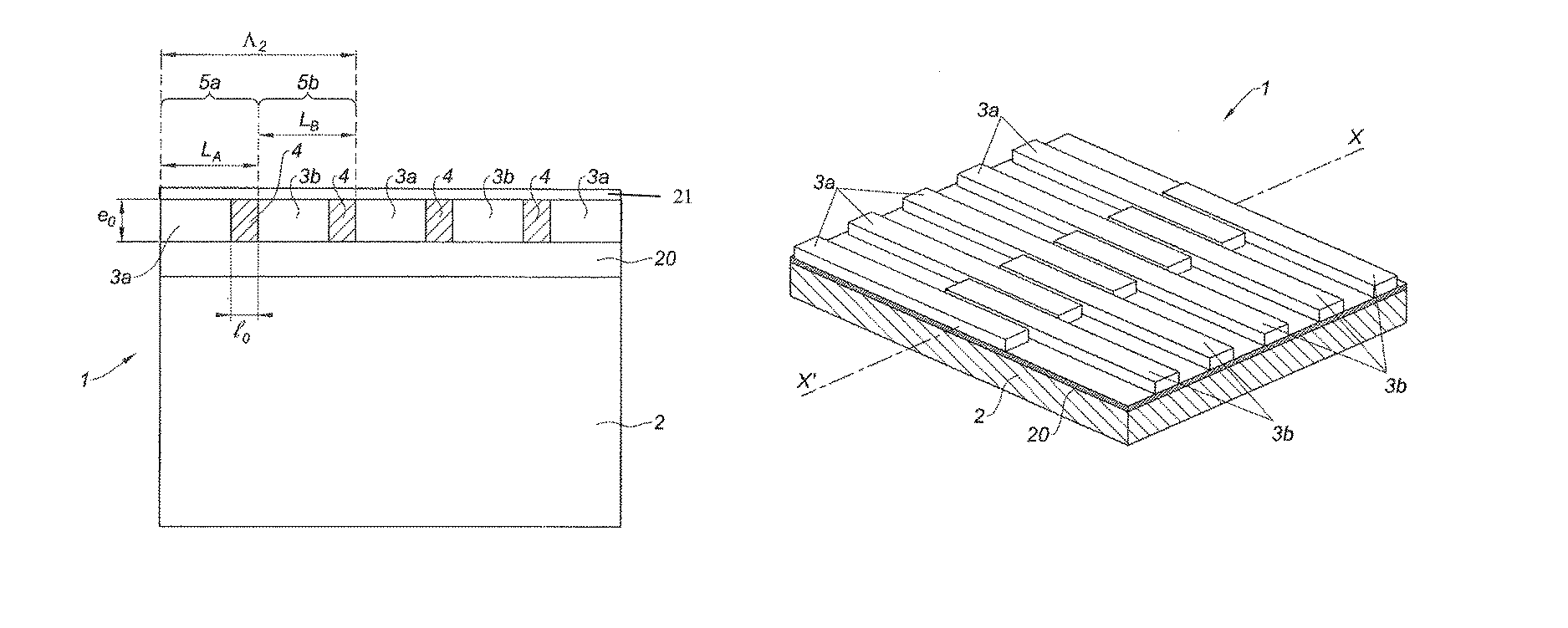

A waveguide including a substrate, an assembly of semiconductor regions consecutively extending on the substrate along a direction corresponding to a propagation direction of an electromagnetic wave having a wavelength noted λ, the semiconductor regions being electrically alternately doped with a first conductivity type and with a second conductivity type along the propagation direction, a dielectric layer interposed between two consecutive semiconductor regions, at least one pair of consecutive elementary structures having a dimensions along the propagation direction adapted to λ to form a grating where the light propagates with no diffraction effects.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G02F Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
