High-resolution scanning microscopy
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Sep 18, 2014
filing date -
Sep 19, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

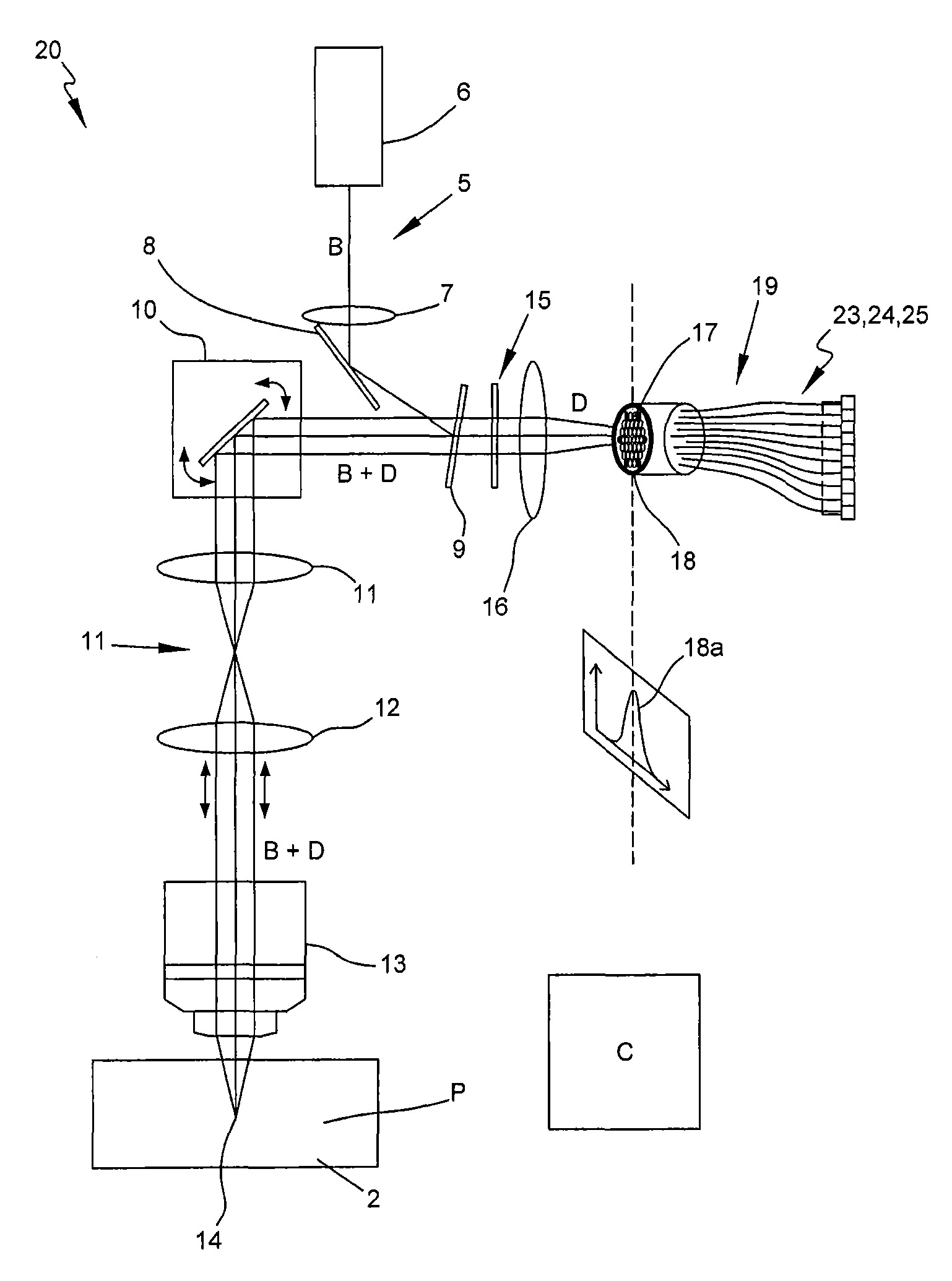

A microscope and method for high resolution scanning microscopy of a sample, having: an illumination device for the purpose of illuminating the sample, an imaging device for the purpose of scanning at least one point or linear spot across the sample and of imaging the point or linear spot into a diffraction-limited, static single image below a reproduction scale in a detection plane. A detector device for detecting the single image in the detection plane for various scan positions is also provided. An evaluation device for the purpose of evaluating a diffraction structure of the single image for the scan positions is provided. The detector device has a detector array which has pixels and which is larger than the single image. At least one phase mask with a variable lateral profile of the phase influence is included in or near to the objective pupil, or in a plane which is conjugated to the objective pupil, for generating a spatial distribution of the illumination light and/or the detection light perpendicular to the optical axis, and/or in the direction of the optical axis.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- G02B Class
- 28.28 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
