System and method for assessing voltage threshold detecting circuitry within a battery pack
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Sep 14, 2015
filing date -
Feb 11, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

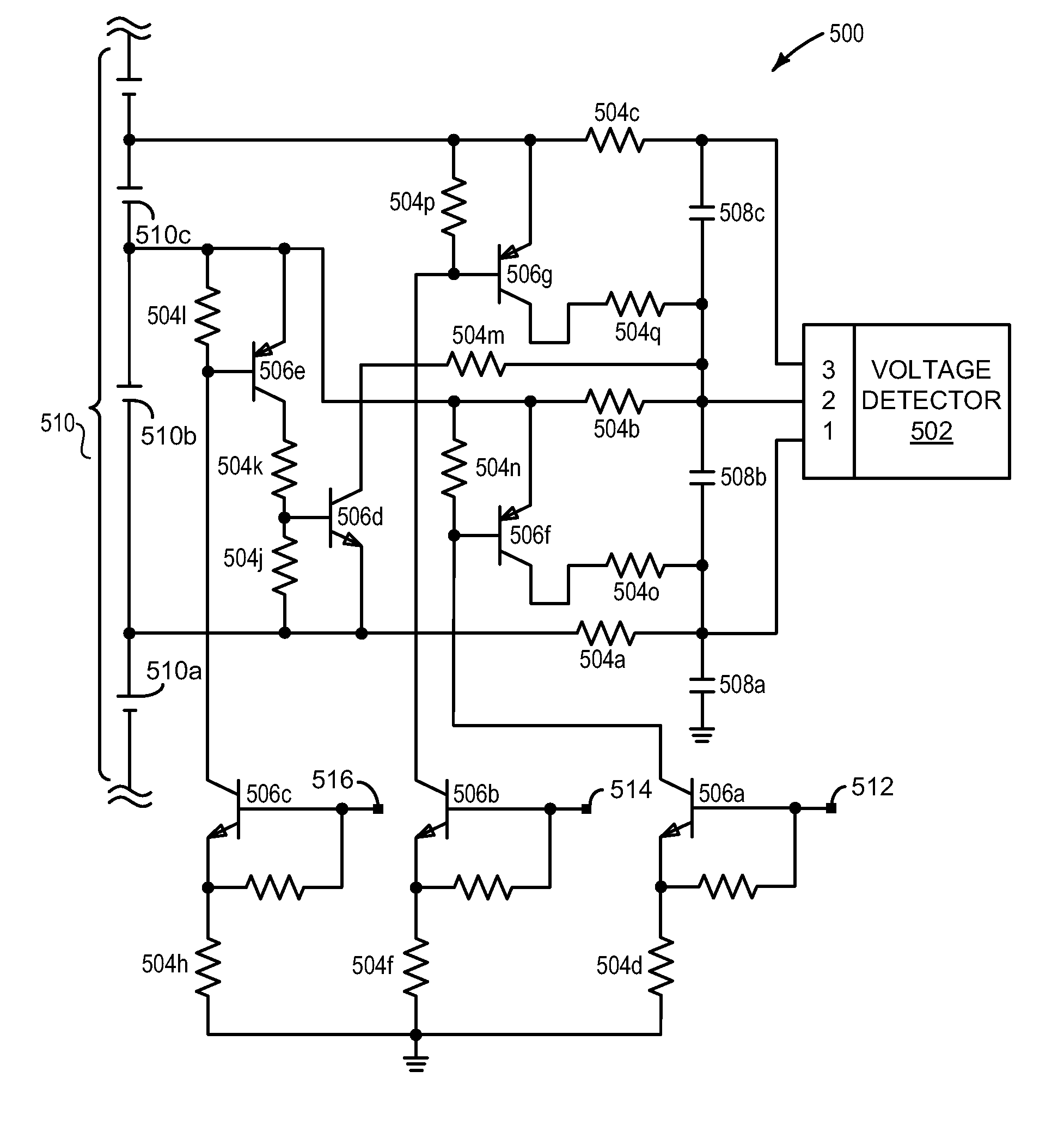

Systems and methods for assessing voltage threshold detection circuitry of individual battery cells within a battery pack supplying power to a vehicle are disclosed. One example system comprises, a plurality of battery cells within a battery pack, a plurality of voltage threshold detecting circuits detecting voltage of the plurality of battery cells, a voltage of a first battery cell of the plurality of battery cells coupled to a first voltage threshold detecting circuit of the plurality of voltage threshold detecting circuits, and a network that selectively couples a second battery cell to the first voltage detecting circuit while the first battery cell is coupled to the first voltage detecting circuit.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- H02J Class
- 4445 Applications Filed
- 3538 Patents Issued To-Date
- 79.60 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H02J Class
- 22.71 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
