Circuit and method for inspecting semiconductor device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Jun 23, 2015
filing date -
Jun 26, 2014
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

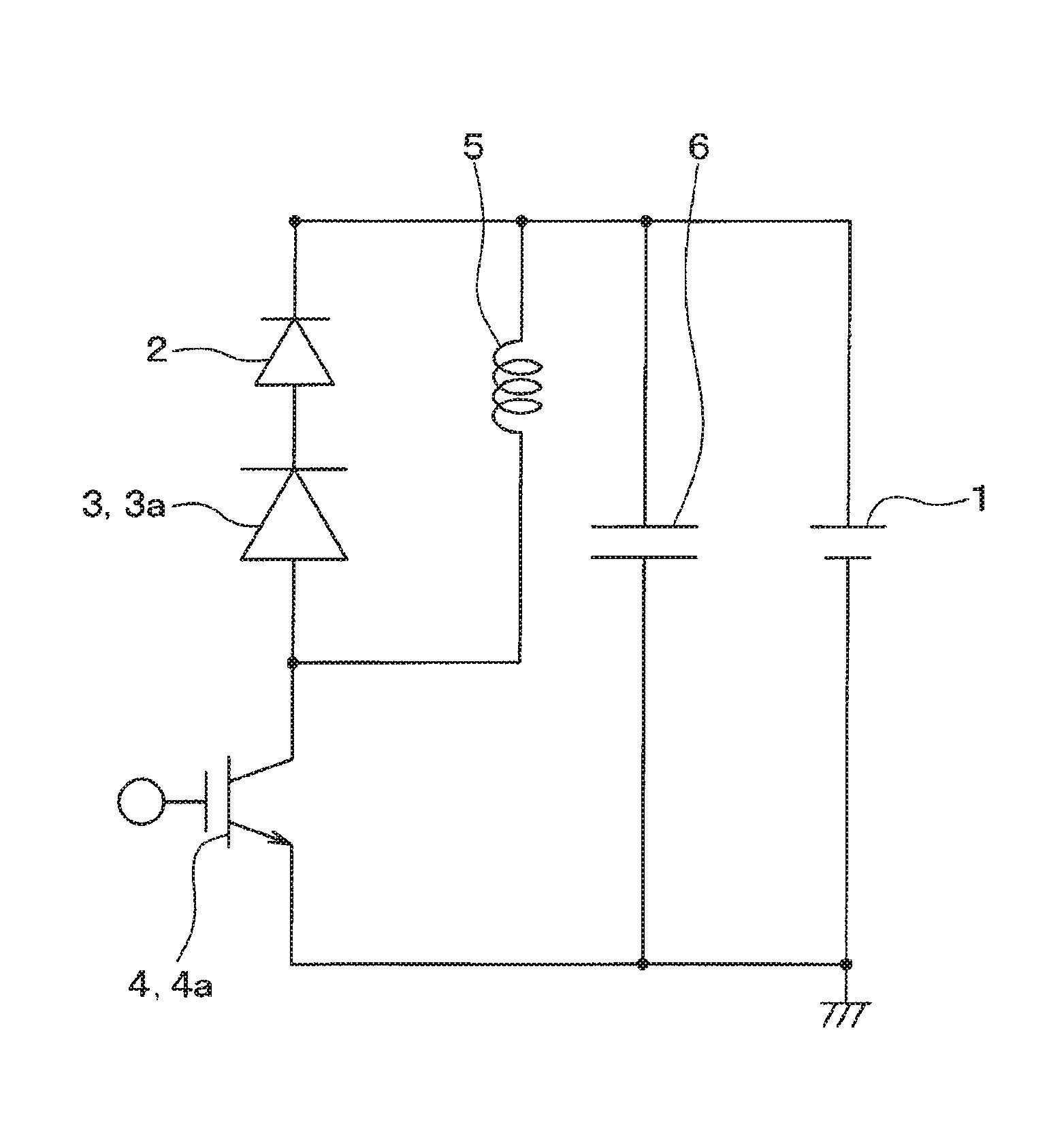

A circuit for inspecting a semiconductor device includes: the semiconductor device that is an object to be inspected and includes a diode; a protection element that is connected in series with the semiconductor device and includes a protection diode having higher breakdown resistance than the diode; a switch that includes a switching element connected in series with the semiconductor device and the protection element; and a coil that provides a loop path together with the semiconductor device and the protection element when the switching element is turned off. Even when the semiconductor device including the diode is broken, an inspection device is restricted from being damaged.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
