Automated work piece center of mass identification system and method for same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Grant Date -
Oct 20, 2016
app pub date -
Apr 17, 2015
filing date -
Apr 17, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

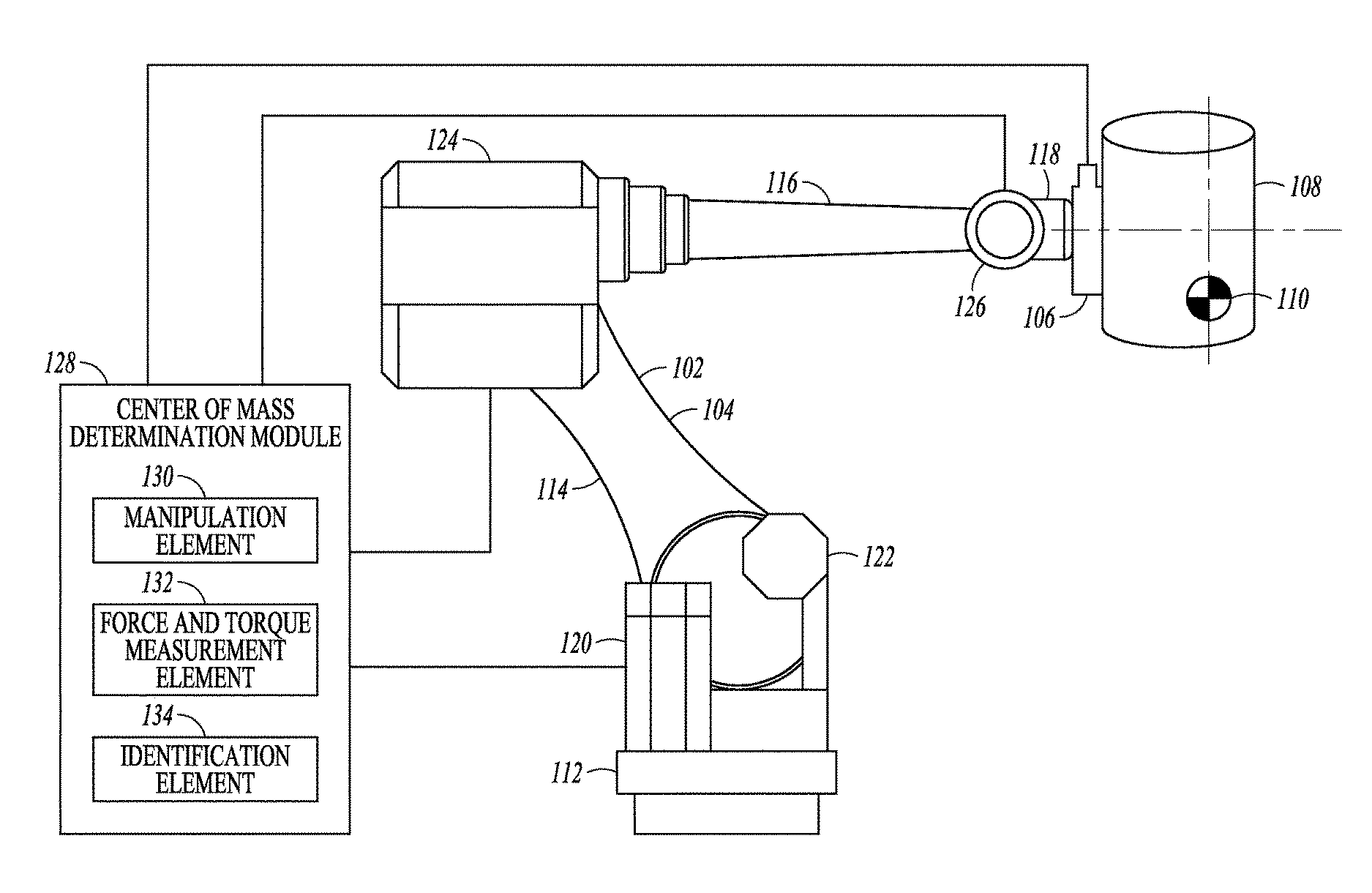

A method and system for identifying a work piece center of mass includes coupling a work piece to a manipulator assembly. The manipulator assembly includes a force and torque sensor. The work piece is positioned in at least two different orientations relative to a gravity vector with the manipulator assembly. The at least two different orientations include at least first and second orientations. In the first orientation the force and torque sensor measures a first torque and at least a first force associated with the work piece in the first orientation. In the second orientation the force and torque sensor measures a second torque associated with the work piece in the second orientation. The work piece center of mass is identified according to at least the measured first and second torques and at least the first force.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- G01M Class
- 1327 Applications Filed
- 1023 Patents Issued To-Date
- 77.10 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- G01M Class
- 26.44 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 20, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 20, 2029 |
