Radar level gauge
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Grant Date -
Feb 11, 2016
app pub date -
Mar 26, 2014
filing date -
Mar 29, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

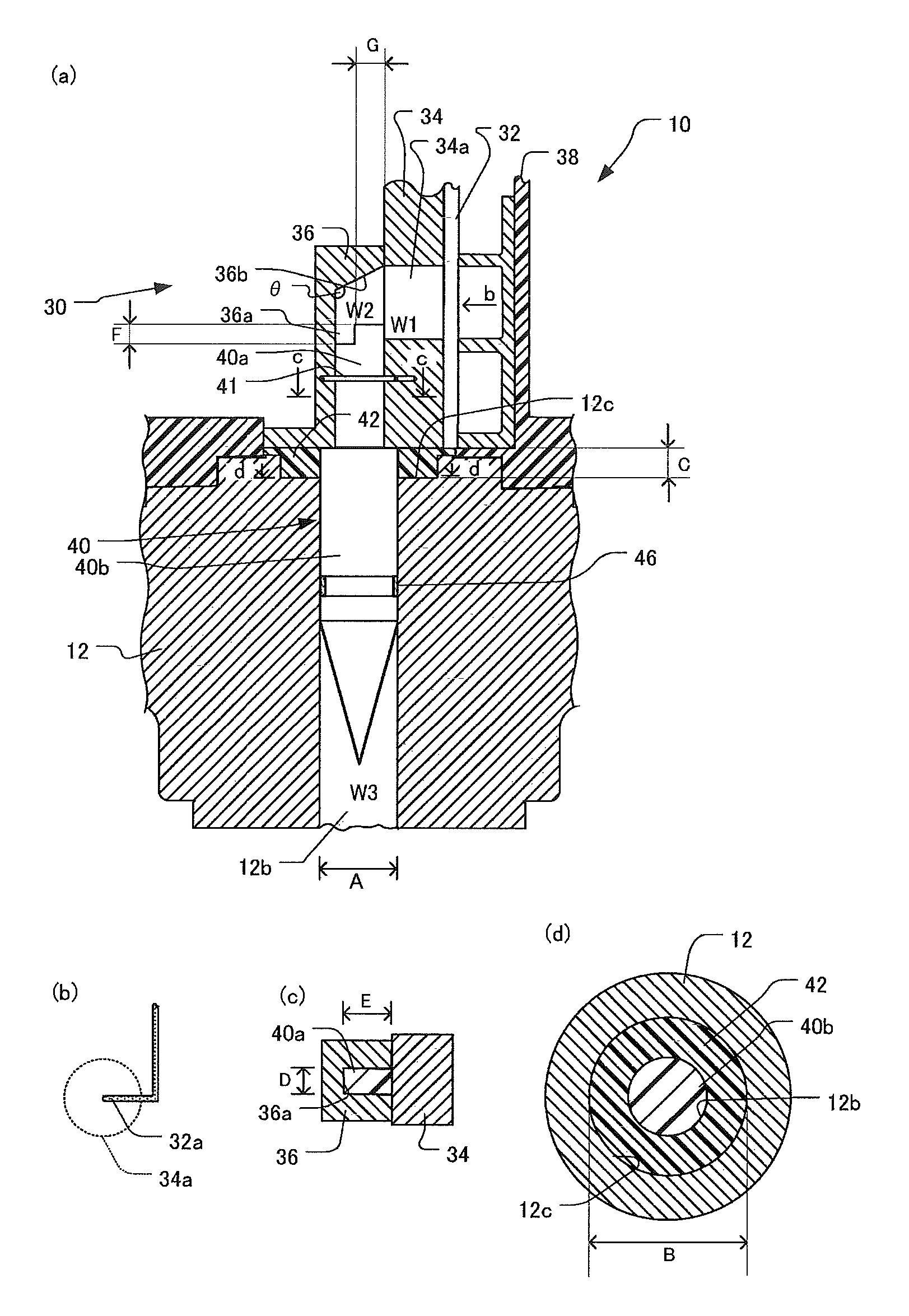

A radar level gauge using electromagnetic signals is provided, which includes a connection arrangement for connecting a transmitter receiver circuit board and an antenna unit with one another, with which the horizontal size of the radar level gauge may be reduced and reflection and transmission losses may be suppressed as well. The transmitter receiver circuit board 32 is so disposed in a housing 12 as to extend vertically. The connection arrangement includes a waveguide sequence which is fed at a feed terminal 32a formed on the transmitter receiver circuit board 32 and composed of three waveguides W1 to W3. Specifically, the waveguide sequence includes, in sequential order from the transmitter receiver circuit board to the antenna unit: a circular waveguide W1 extending horizontally and perpendicular to the transmitter receiver circuit board; a rectangular waveguide W2 in connection with the circular waveguide W1 and extending vertically; and a second circular waveguide W3 further in connection with the rectangular wave guide W2 and extending vertically.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H01P Class
- 35.54 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
