Refrigerator having heat exchanger including baffle blocking header tube
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Jun 27, 2013
filing date -
Jul 6, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

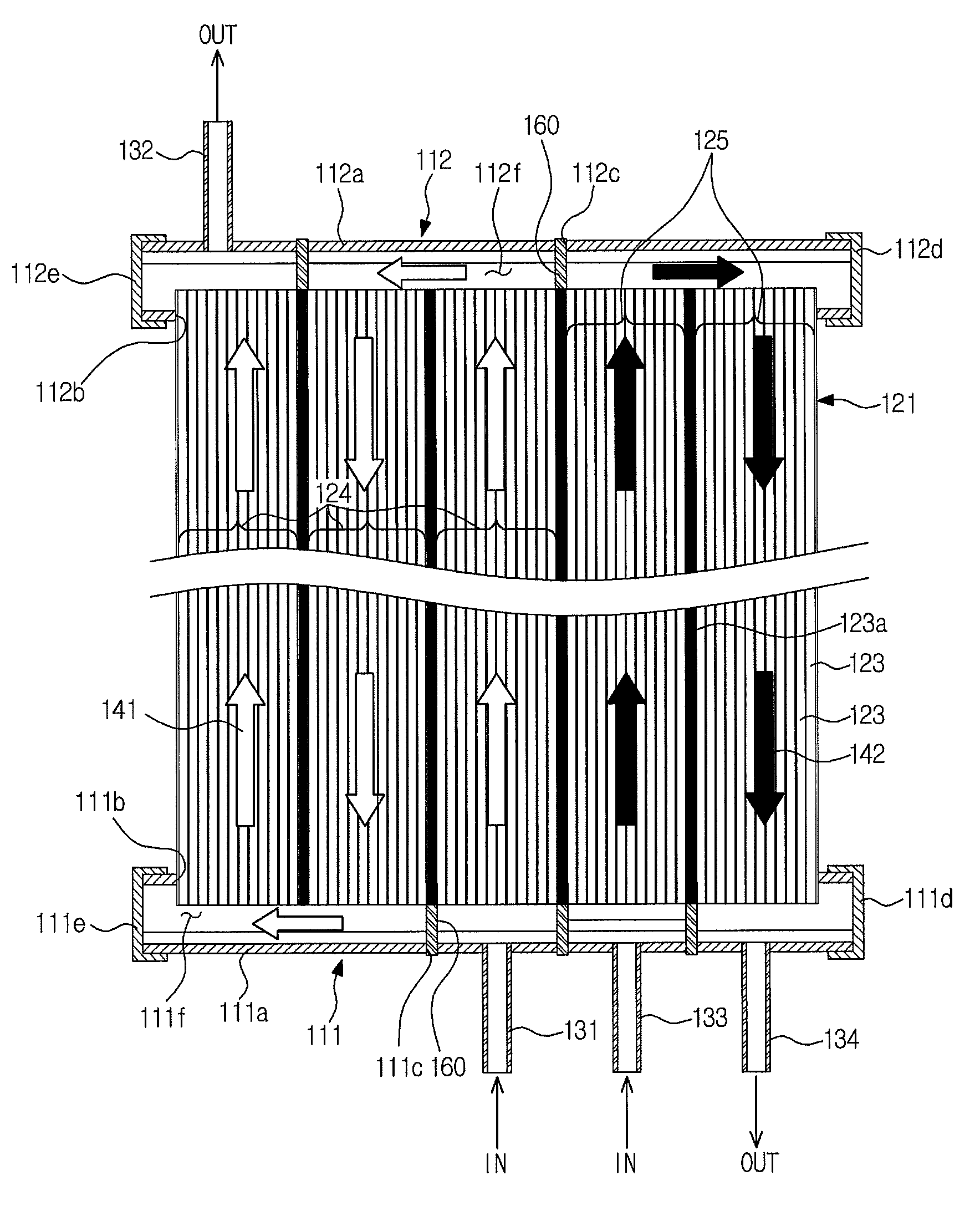

A refrigerator includes a body, first and second storage compartments, first and second refrigerating units to cool the first and second storage compartments, and a heat exchanger to individually condense first and second refrigerants of the first and second refrigerating units and a second refrigerant of the second refrigerating unit. The heat exchanger includes first and second headers each having an opening formed in the outer wall, a tube inserted into the first and second headers through the openings, and a baffle disposed in the internal space of the first header so as to partition off the internal space of the first header. The tube includes a plurality of channels spaced apart from each other by a predetermined gap, and the baffle blocks at least one of the plurality of channels.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- F28D Class
- 654 Applications Filed
- 552 Patents Issued To-Date
- 84.41 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- F28D Class
- 36.54 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
