Corn head row unit gearbox lubrication
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Oct 2, 2015
filing date -
Oct 2, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

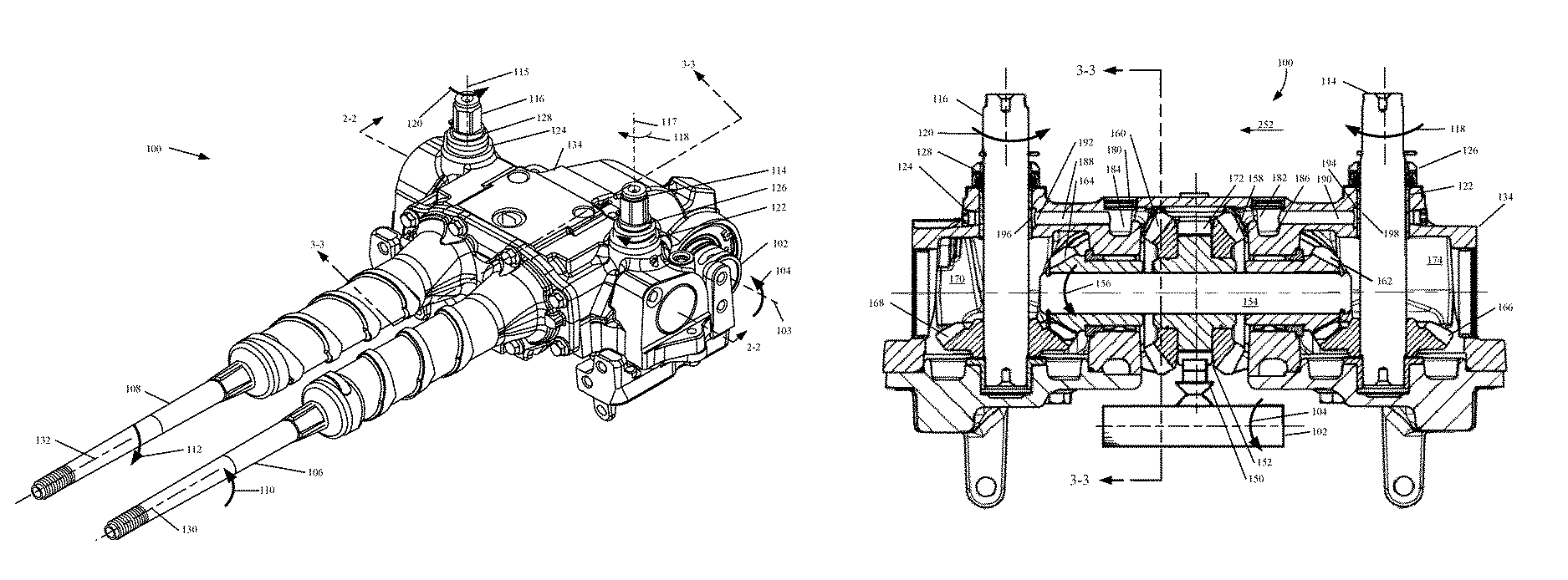

A corn head row unit gearbox includes an input shaft, that rotates about a first axis of rotation and that drives a set of bevel gears. The bevel gears transfer rotation of the input shaft into rotation of a set of gathering chain output shafts about a second axis of rotation, generally transverse to the first axis of rotation. The gathering chain drive shafts each rotate within a bushing mounted within a frame structure of the gearbox. The frame structure defines a bore that communicates with a bevel gear cavity, in which at least one of the sets of bevel gears rotates, and an interior of the bushings mounted on the gathering chain drive shafts. Rotation of the bevel gears carries lubricant to an inlet aperture on the bore and drives the lubricant through the bore into the bushings.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- A01D Class
- 543 Applications Filed
- 471 Patents Issued To-Date
- 86.75 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- A01D Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
