Belt auto-tensioner
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Dec 4, 2015
filing date -
Jun 15, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

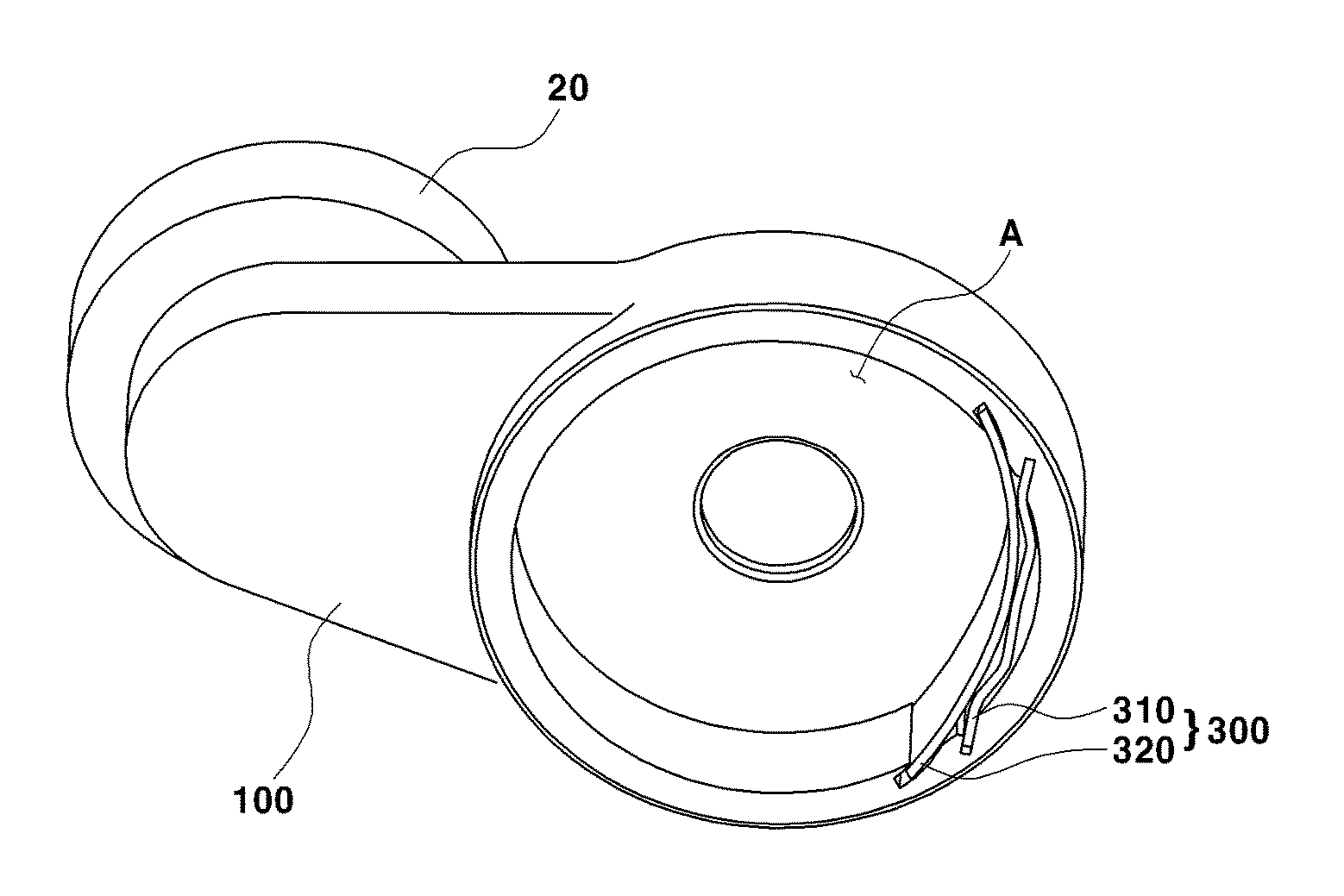

The present disclosure provides a belt auto-tensioner that automatically adjusts tension of a belt for rotational force transmission between an engine and auxiliary machinery components, the belt auto-tensioner comprising: an upper cover that is provided with a pulley being in contact with the belt and has a receiving space provided so as to be spaced apart from the pulley; a tensioner body that is inserted into the receiving space, and provides friction attenuation to the upper cover when the upper cover rotates in a direction opposite to a direction of tension applying engagement by the tension of the belt; and a friction unit that is installed on an inner surface of the receiving space, and is formed so as to rub against an outer surface of the tensioner body when the upper cover rotates.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- B60K Class
- 2427 Applications Filed
- 1969 Patents Issued To-Date
- 81.13 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B60K Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
