Ball joint
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
May 15, 2013
filing date -
May 25, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

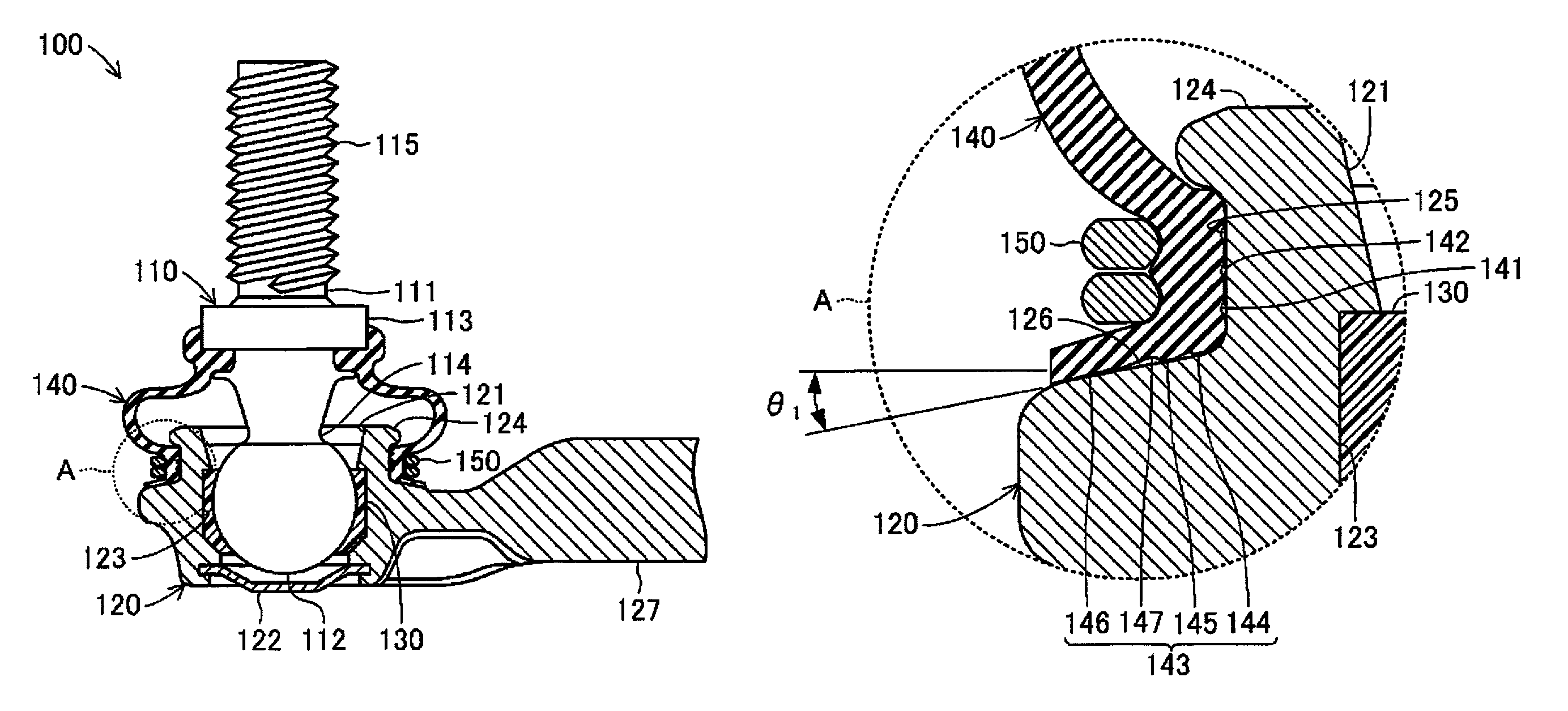

A ball joint has a dust cover fitted onto the outer periphery of a socket formed into the shape of a cylinder with a bottom. The socket has a dust cover groove into which a socket-fitting portion of the dust cover is fitted, and a dust cover-recieving surface for supporting a socket-facing surface of the dust cover. The dust cover-recieving surface inclines toward the socket-facing surface while extending from the outer side toward the inner side. Radial projections are formed on the inner peripheral surface of the socket-fitting portion of the dust cover. An axial projection which projects toward the dust cover-recieving surface is formed on the socket-facing surface of the dust cover.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F16C Class
- 45.21 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
