Cable guard structure for locking mechanism of vehicle, and vehicle including same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Grant Date -
Mar 5, 2015
app pub date -
Aug 27, 2014
filing date -
Aug 30, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

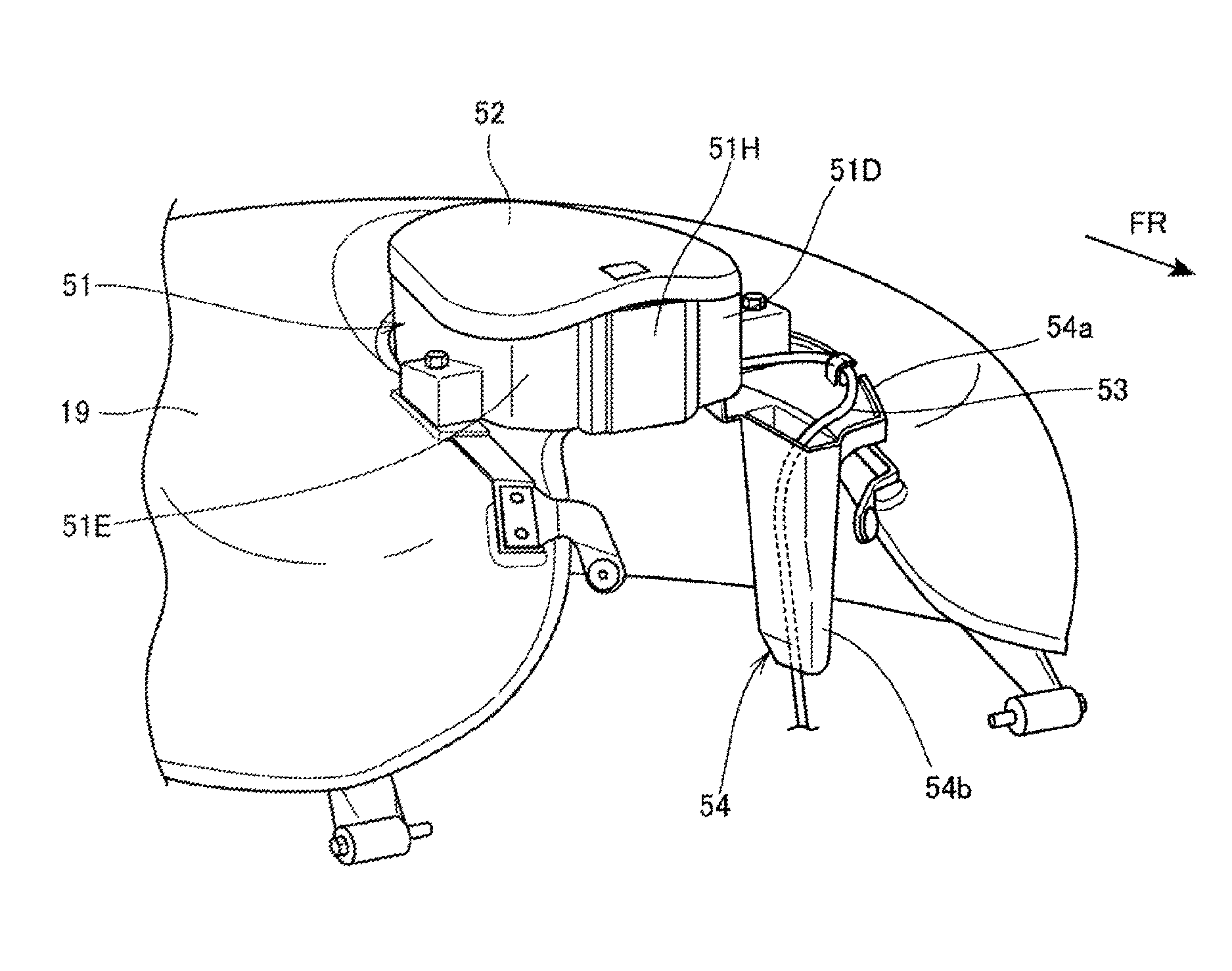

In a cable guard structure for a locking mechanism in which a lid hook is engaged with a first swing member to lock a fuel lid, and the locking of the fuel lid is released by a release operation through a cable connected to the side of the vehicle body side locking member, the first swing member is disposed at the general center of a vehicle body. The cable is routed in vehicle in a vertical direction. A cable guide guides the cable. The cable guide is a long tubular member, and is arranged substantially vertically. The cable is passed through the cable guide. Such cable guard structure for a locking mechanism can prevent access to a cable from the outside.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- F16C Class
- 1220 Applications Filed
- 1060 Patents Issued To-Date
- 86.89 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F16C Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
