Holder for fastening a fuel distributor to an internal combustion engine, and fuel injection system having such a holder
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Apr 24, 2013
filing date -
Jun 20, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

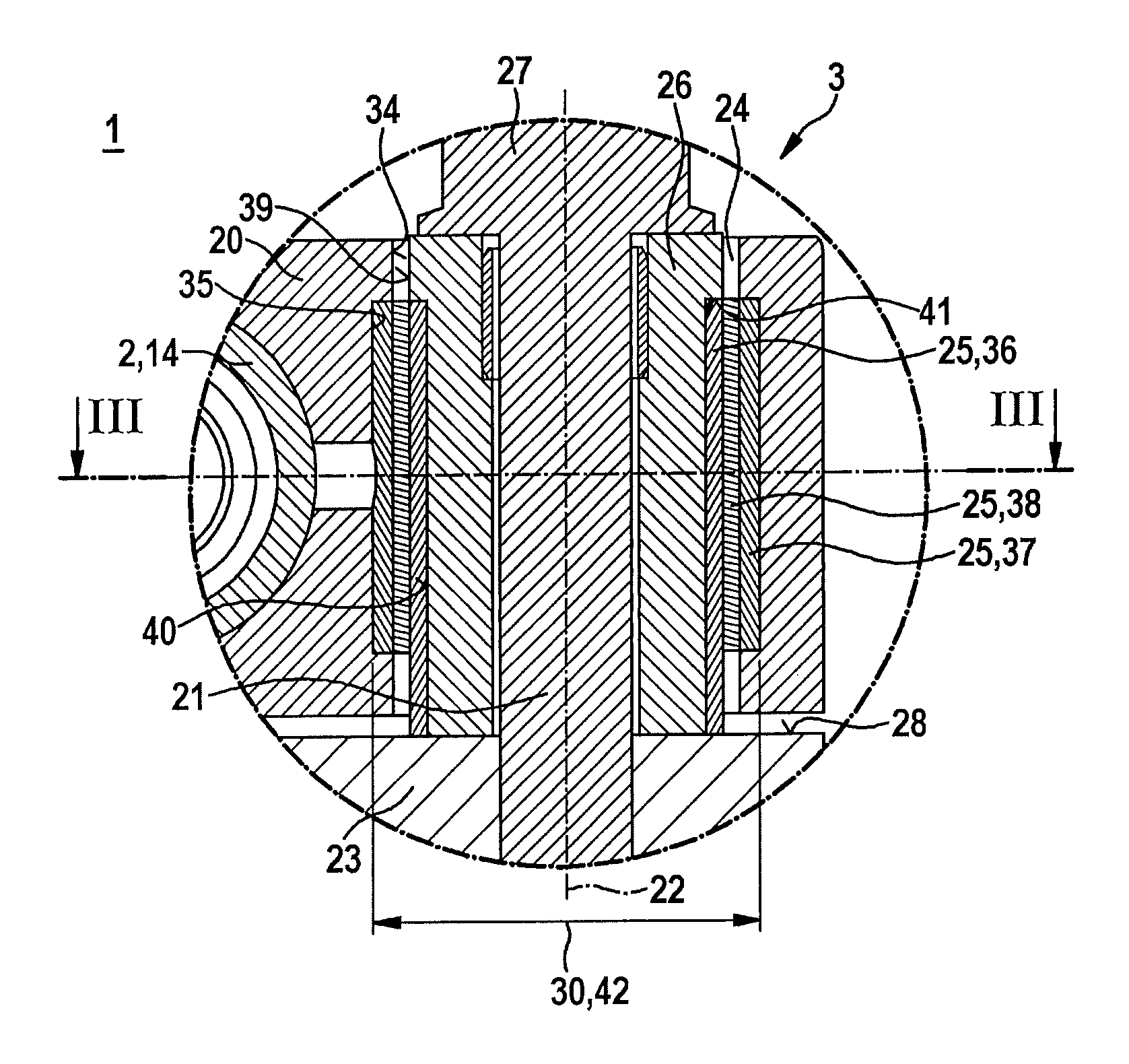

A holder used for mounting at least one component on an add-on structure, e.g., an internal combustion engine, includes: a base element able to be connected to a component; a fixation element, which extends through the through bore of the base element and a damping element disposed in the through bore, in order to mount the base element on the add-on structure; a fixation sleeve; and a damping element surrounding an outer side of the fixation sleeve and form-fittingly connected to the fixation sleeve on at least one side along the longitudinal axis, and on at least one side the damping element is form-fittingly connected to the base element along the longitudinal axis.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F02M Class
- 21.60 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
