Fuel injector
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
May 29, 2013
filing date -
Jun 13, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

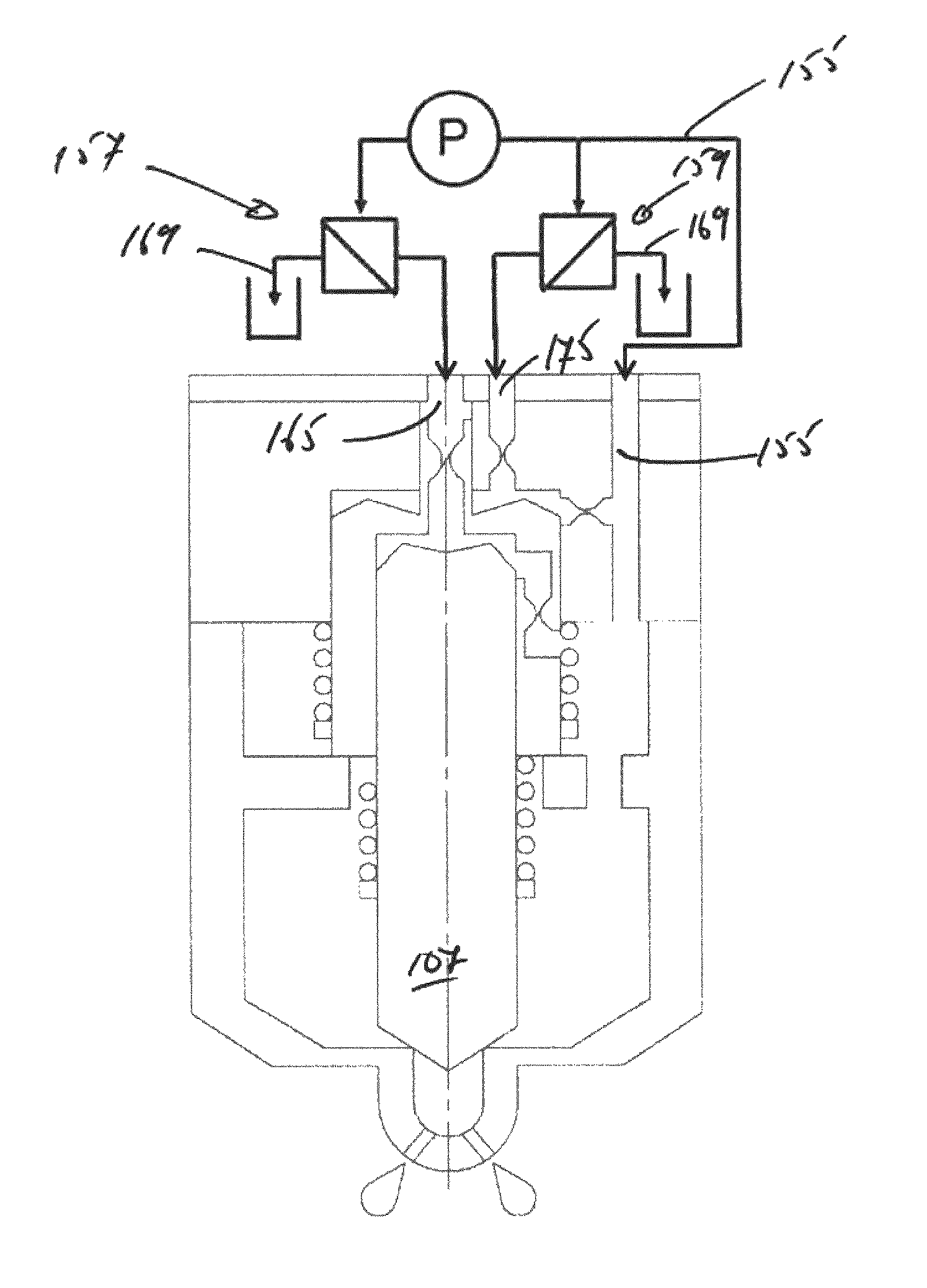

The present invention relates to a fuel injector for use in delivering fuel to an internal combustion engine. The fuel injector includes a nozzle having a valve needle which is movable with respect to a valve needle seat. The valve needle travels through a range of movement between a closed position and an open position to control fuel delivery through at least one nozzle outlet. The valve needle cooperates with a needle sleeve or a control member which is located in a piston guide. The valve needle is movable relative to the needle sleeve or the control member. The needle sleeve or the control member is movable relative to the piston guide. The invention also relates to a method of operating a fuel injector; and a fuel injector control unit.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- F02M Class
- 1202 Applications Filed
- 1045 Patents Issued To-Date
- 86.94 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- F02M Class
- 21.60 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
