Start control device of homogeneous-charge compression ignition engine

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 9863350
APP PUB NO 20160076472A1
SERIAL NO

14787739

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

When a predetermined restart condition is satisfied after an engine is automatically stopped, whether or not a piston of a stopped-in-compression-stroke cylinder which is in a compression stroke falls within a specific range set at a bottom dead center side of a predetermined upper limit position is determined. When the piston of the stopped-in-compression-stroke cylinder falls within the specific range, a first compression start is executed in which fuel is injected from an injector into the stopped-in-compression-stroke cylinder for the first time and is then self-ignited. In the first compression start, a start timing of a first fuel injection operation with respect to the stopped-in-compression-stroke cylinder is set to be earlier as a stop position of the piston of the cylinder gets closer to the bottom dead center within the specific range.

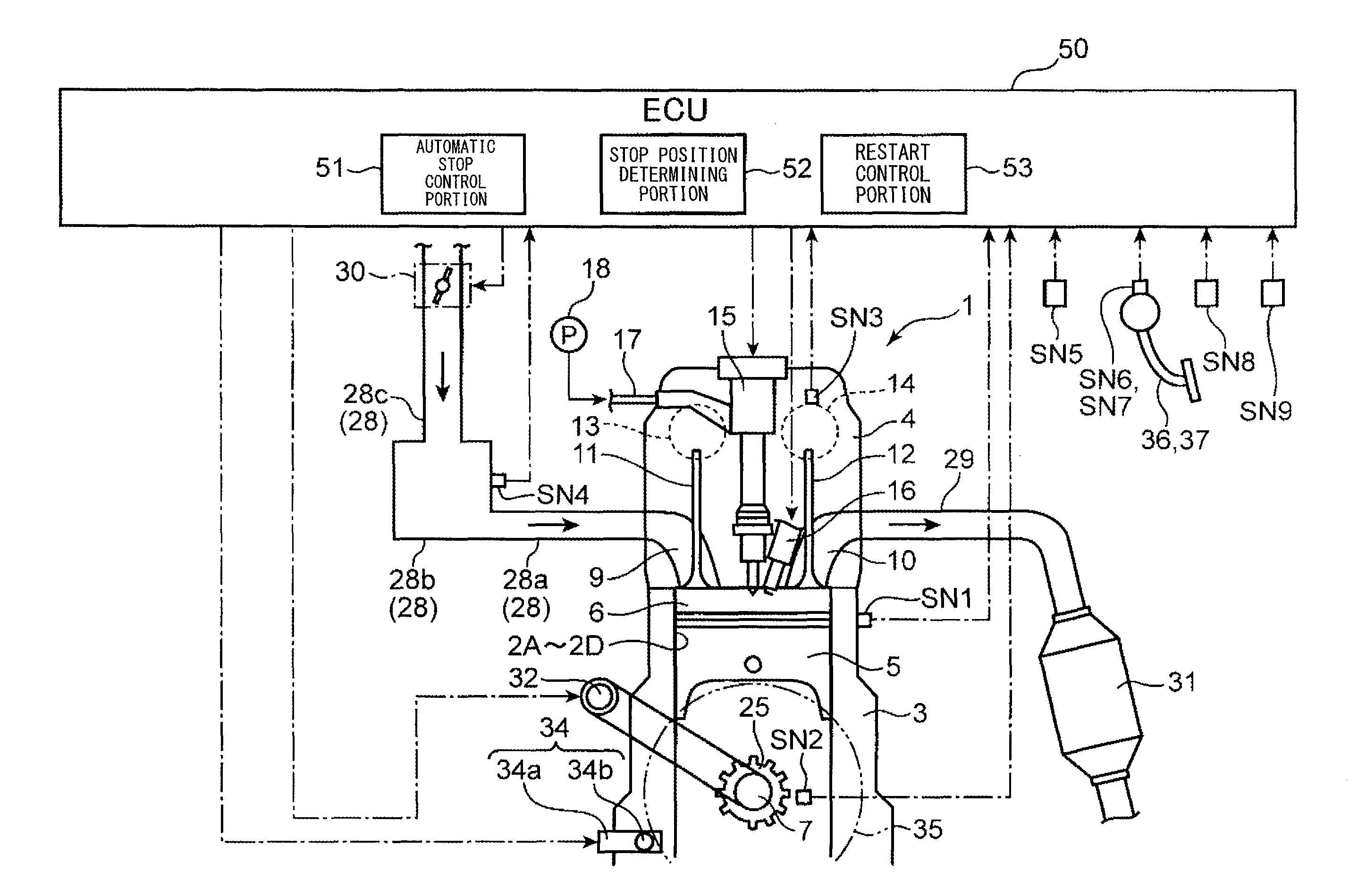

Loading the Abstract Image... loading....

First Claim

See full text

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
MAZDA MOTOR CORPORATION3-1 SHINCHI FUCHU-CHO AKI-GUN HIROSHIMA 7308670 ?7308670

International Classification(s)

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Maekawa, Kota Hiroshima, JP 10 29
Nakamoto, Yoshihisa Hiroshima, JP 12 167
