Hydraulic control system for vehicle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Sep 11, 2015
filing date -
Sep 16, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

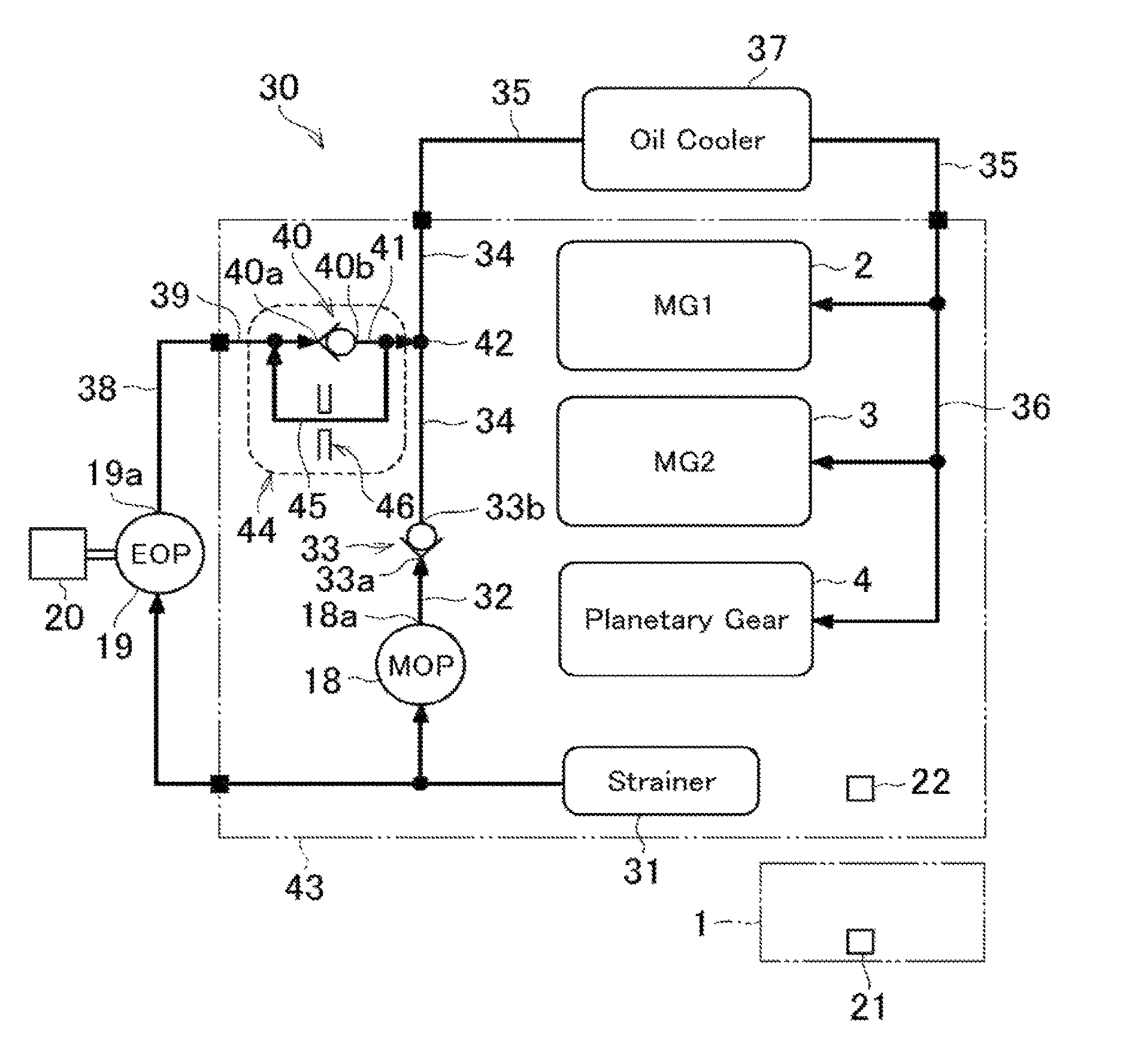

A first check valve of a hydraulic control system allows oil to flow in only a direction from a first oil pump toward an oil receiving portion. A second check valve allows oil to flow in only a direction from a second oil pump toward the oil receiving portion. A third oil passage is configured to provide communication between a merging point of a first oil passage and a second oil passage, and the second oil pump by bypassing the second check valve. The third oil passage includes a throttle mechanism. The third oil passage is configured to restrict a flow rate of oil that is discharged from the second oil pump.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- F01M Class
- 319 Applications Filed
- 261 Patents Issued To-Date
- 81.82 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F01M Class
- 41.03 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
