System for packaging electronic components in a rotatable shaft
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Nov 10, 2016
filing date -
Nov 14, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

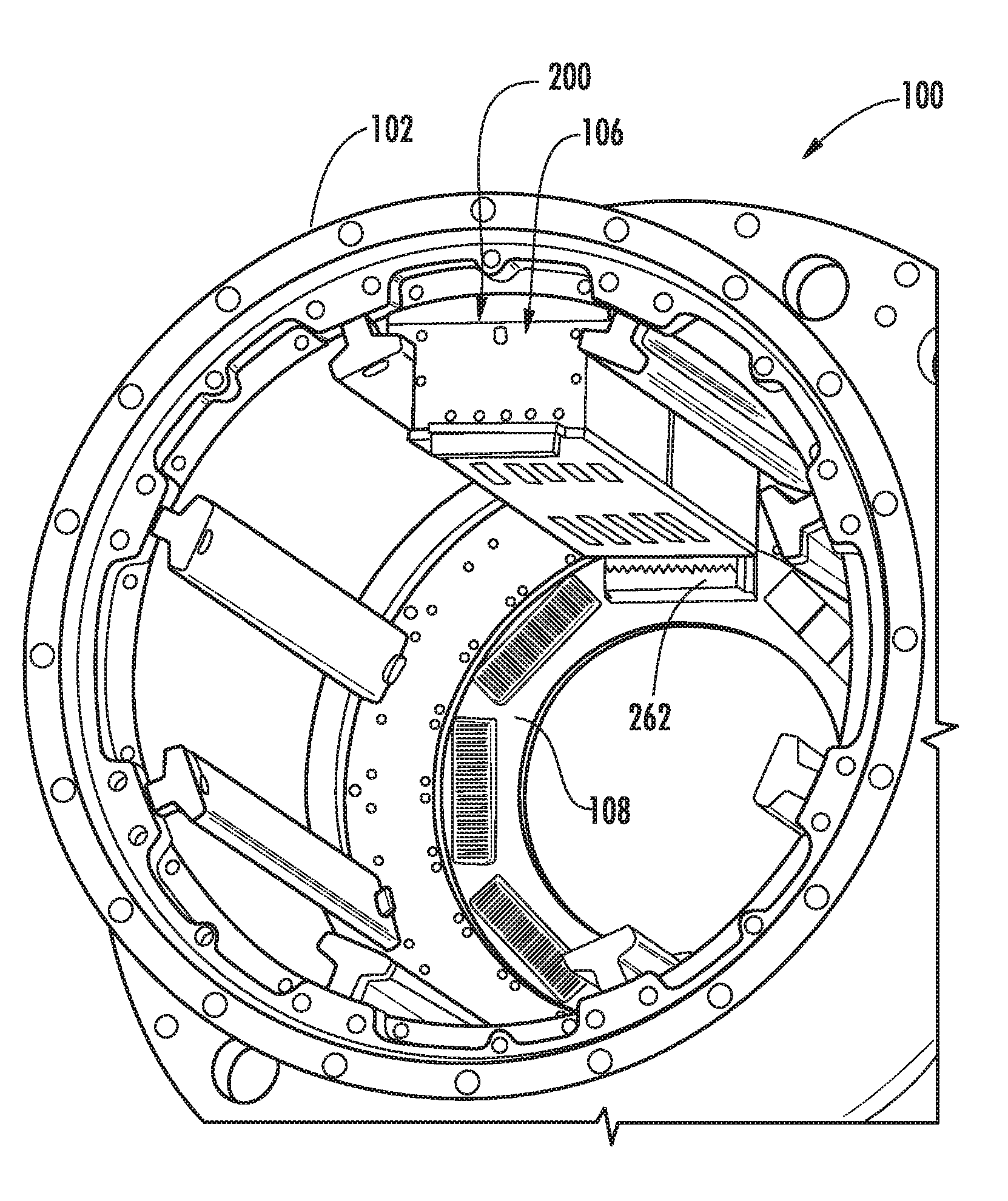

A system for packaging electronic components in a rotatable shaft includes an annular carrier shaft having a first end that is axially spaced from a second end and an inner surface that is radially spaced from an outer surface, and a plurality of transmitter assemblies annularly arranged within the carrier shaft. Each transmitter assembly includes a transmitter housing radially supported within the carrier shaft via a pair of circumferentially spaced rail members. Each transmitter assembly comprises a daughter board that extends laterally and longitudinally across a bottom portion of the transmitter housing and at least one electronic component electrically coupled to the daughter board. The electronic component extends substantially perpendicular to the daughter board within the transmitter housing.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- F03D Class
- 726 Applications Filed
- 529 Patents Issued To-Date
- 72.87 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F03D Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
