Turbine shroud engagement arrangement and method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Dec 10, 2012
filing date -
Dec 10, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

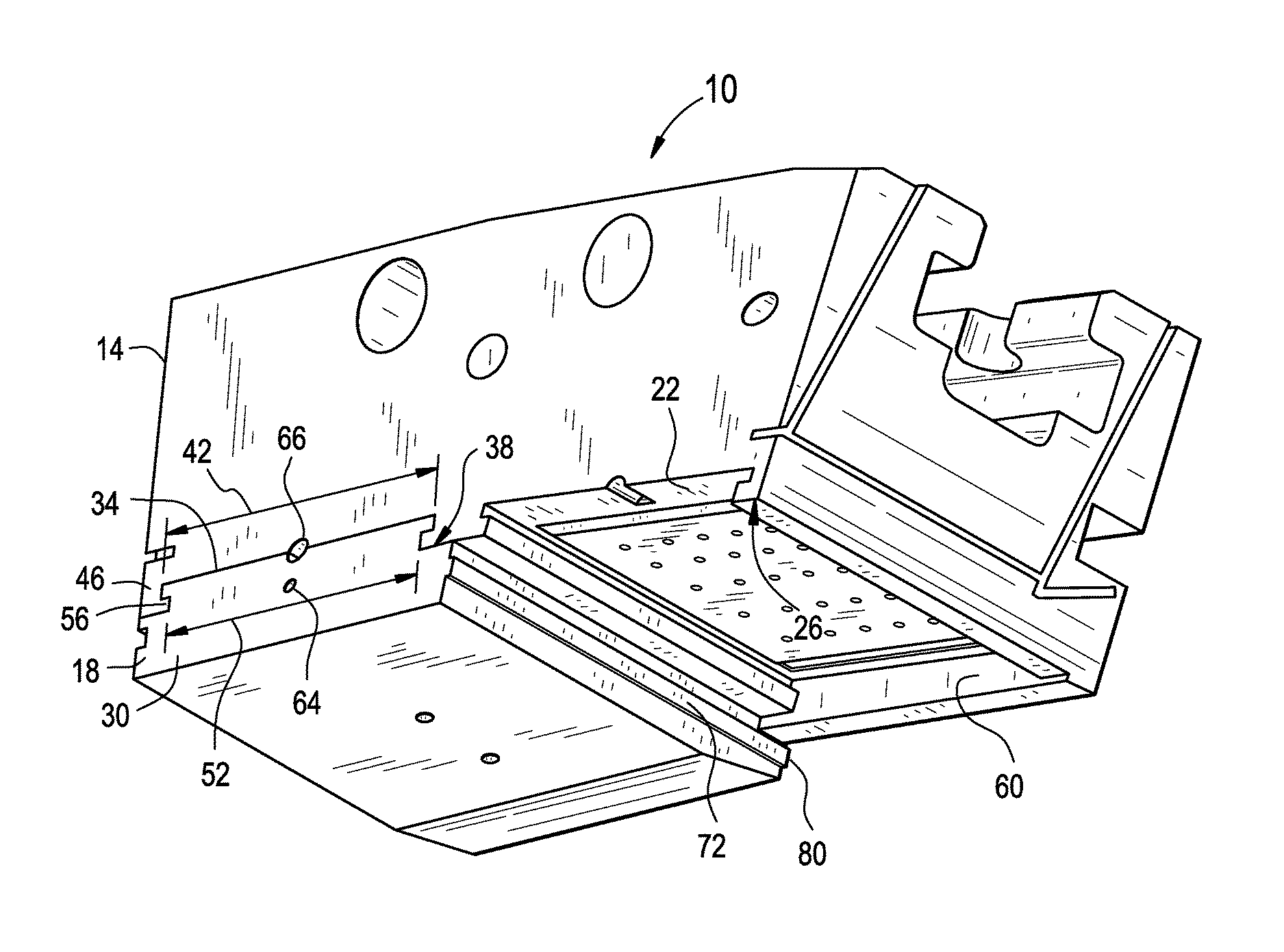

According to one aspect of the invention a turbine shroud engagement arrangement includes an outer shroud and an inner shroud operably connectable to the outer shroud. The outer shroud has at least one of a channel formed in and a protruding member extending from an inner radial surface thereof. The inner shroud has at least one of a protruding member extending from an outer radial surface thereof that is complementary to the at least one channel of the outer shroud or a channel formed in the outer radial surface that is complementary to the at least one protruding member of the outer shroud. The turbine shroud engagement arrangement is primarily axially slidably engagable and configured to radially support the inner shroud relative to the outer shroud.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- F01D Class
- 1871 Applications Filed
- 1621 Patents Issued To-Date
- 86.64 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 5 Citation Count
- F01D Class
- 31.14 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
