Isolation device containing a dissolvable anode and electrolytic compound
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Mar 27, 2017
filing date -
Jun 8, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance

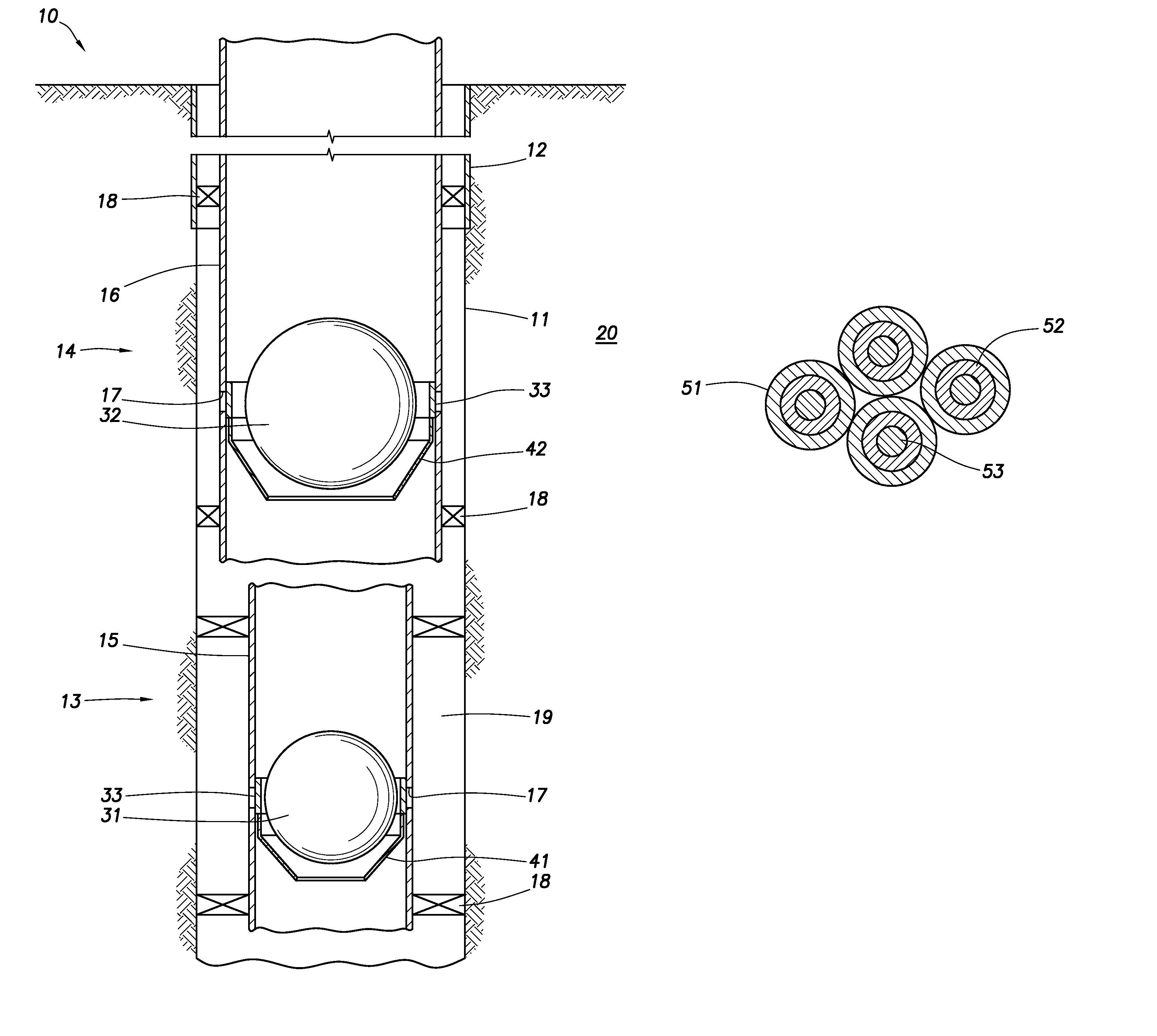

Abstract
A wellbore isolation device comprising: a first material, wherein the first material: (A) is a metal or a metal alloy; and (B) partially dissolves when an electrically conductive path exists between the first material and a second material and at least a portion of the first and second materials are in contact with an electrolyte; and an electrolytic compound, wherein the electrolytic compound dissolves in a fluid located within the wellbore to form free ions that are electrically conductive. A method of removing the wellbore isolation device comprises: placing the wellbore isolation device into the wellbore; and allowing at least a portion of the first material to dissolve.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- E21B Class
- 3899 Applications Filed
- 2959 Patents Issued To-Date
- 75.90 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- E21B Class
- 18.80 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
