Sled-attached ice shelter with flexible and rigid pole structure
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Mar 2, 2016
filing date -
Mar 2, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

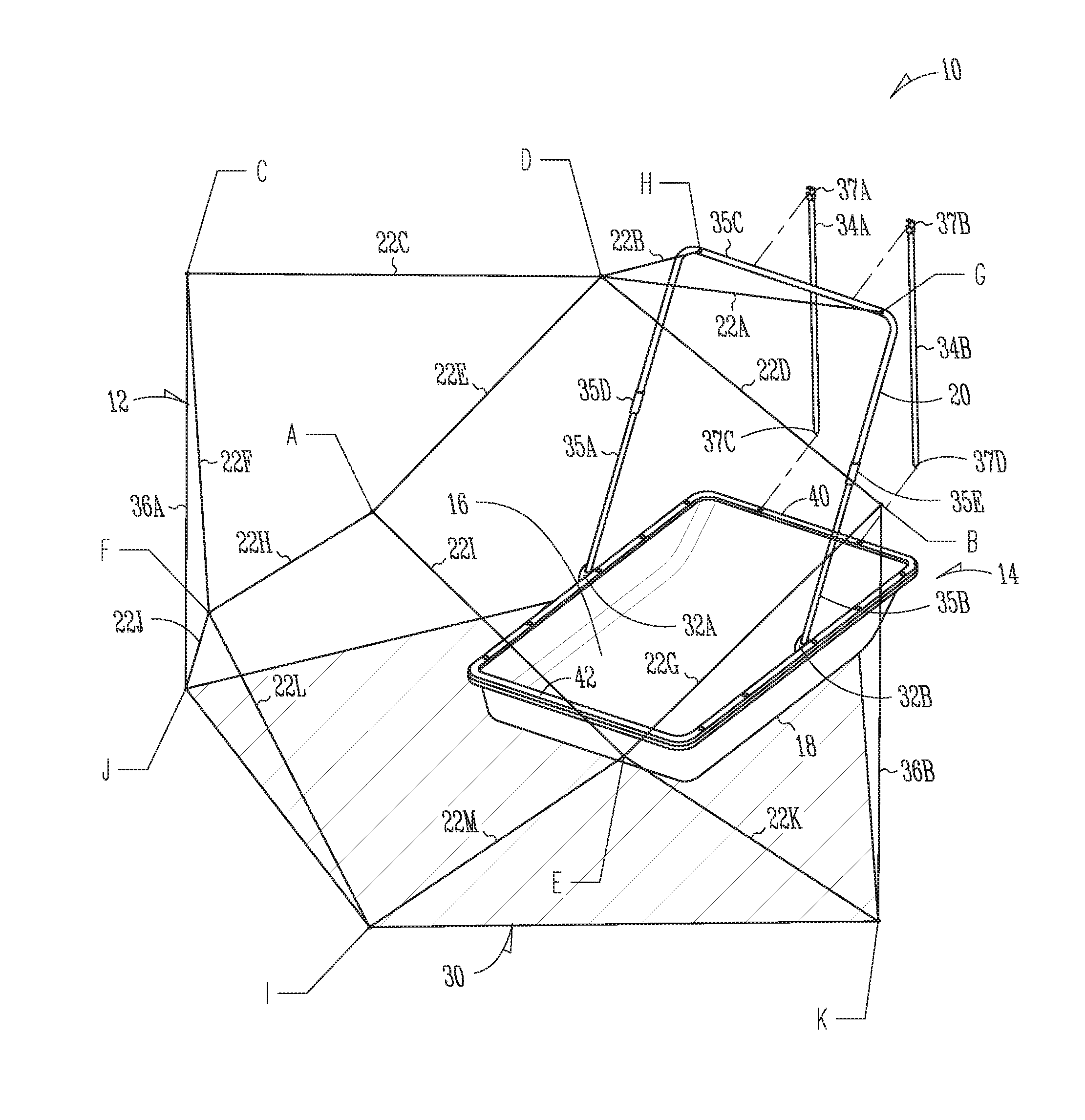

A portable ice shelter comprises a base, a rigid frame member, a multi-panel skin and a first set of flexible poles. The base comprises a bottom wall and a sidewall that forms an outer perimeter. The rigid frame member is pivotably mounted to the base at first and second locations, and is moveable between a stored position against the base and a deployed position. angled from the base. The multi-panel skin is coupled to the rigid frame member, the multi-panel skin defining an enclosure when expanded. The first set of flexible poles extend from the rigid frame member, and each of the flexible poles in the first set is connected in an expandable fashion so as to expand at least a portion of the multi-panel skin when the rigid frame member is in the deployed position.
