Cleaning agent for semiconductor substrates and method for processing semiconductor substrate surface
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Nov 7, 2014
filing date -
Nov 8, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

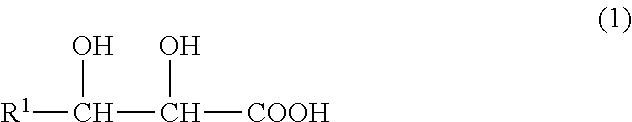

The present invention relates to a cleaning agent for a semiconductor substrate having a copper wiring film or a copper alloy wiring film, and a cobalt-containing film to be used in a post-process of a chemical mechanical polishing process, comprising (A) an organic acid represented by general formula described in the present specification, (B) amines selected from the group consisting of (B-1) diamines, (B-2) amidines, (B-3) azoles, and (B-4) pyrazines or pyrimidines, represented by general formulae described in the present specification, (C) a hydroxylamine derivative, and (D) an oxygen scavenger represented by general formula described in the present specification, and being an aqueous solution having a pH of 10 or higher; and a processing method for the surface of a semiconductor substrate, having a copper wiring film or a copper alloy wiring film, and a cobalt-containing film, which comprises using the cleaning agent.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- H01L Class
- 23828 Applications Filed
- 21803 Patents Issued To-Date
- 91.51 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- H01L Class
- 23.71 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
