System and process for recovering algal oil
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Aug 20, 2015
filing date -
Aug 20, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

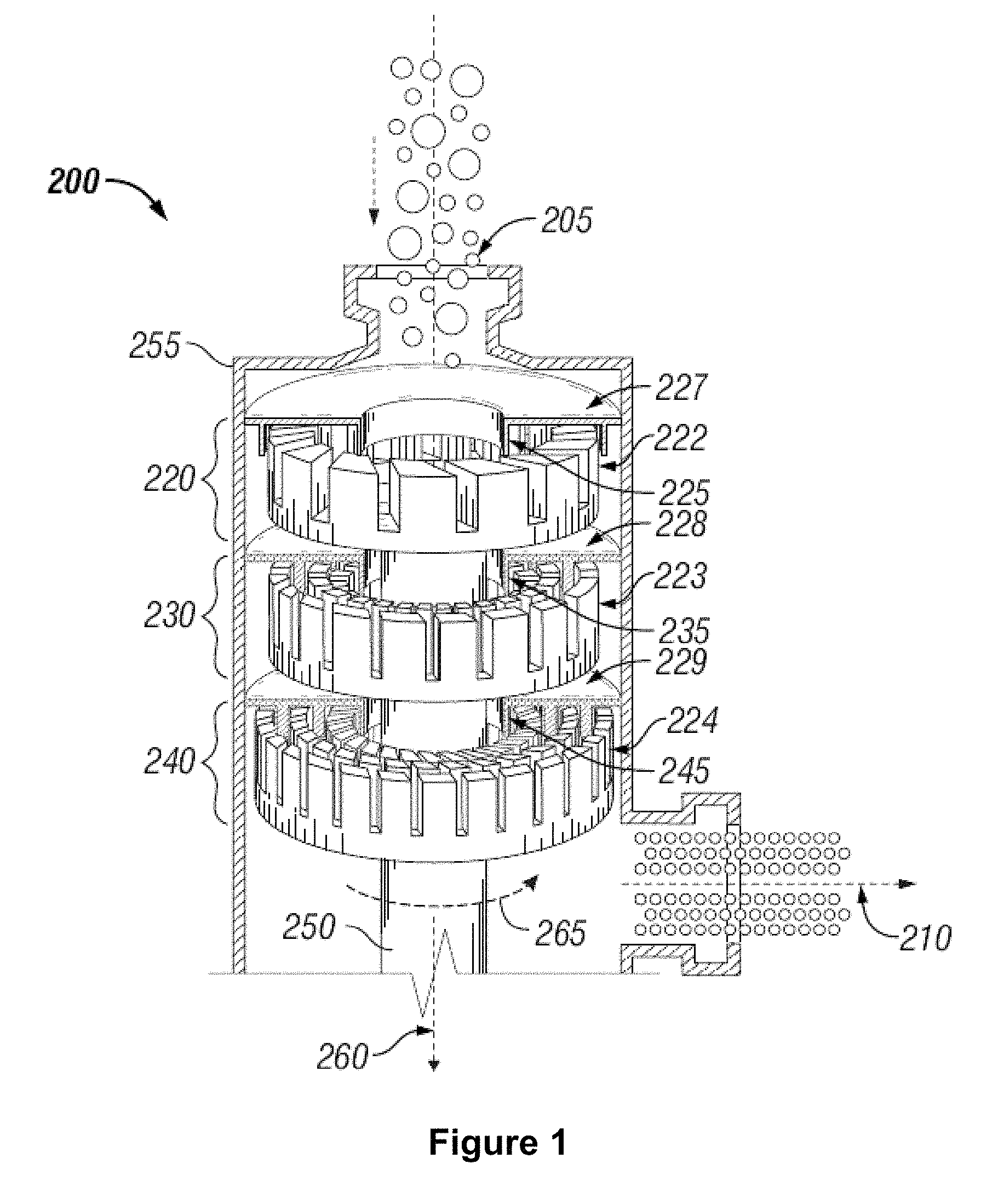

Herein disclosed is a method of processing a medium containing algae microorganisms to produce algal oil and by-products, comprising providing the medium containing algae microorganisms; passing the medium through a rotor-stator high shear device; disintegrating cell walls of and intracellular organelles in the algae microorganisms to release algal oil and by-products; and removing the algae medium from an outlet of the high shear device. In an embodiment, disintegration is enhanced by a penetrating gas capable of permeating the cell wall. In an embodiment, enhancement is accomplished by super-saturation of the penetrating gas in the medium or increased gas pressure in a vessel. In an embodiment, the penetrating gas is different from the gas produced by the cell during respiration. A suitable system is also discussed in this disclosure.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- C11B:PRODUCING, e.g. BY PRESSING RAW MATERIALS OR BY EX....
- C12P:FERMENTATION OR ENZYME-USING PROCESSES TO SYNTHESI....
- C10L:FUELS NOT OTHERWISE PROVIDED FOR; NATURAL GAS; SYN....
- C12M:APPARATUS FOR ENZYMOLOGY OR MICROBIOLOGY
- A23D:EDIBLE OILS OR FATS, e.g. MARGARINES, SHORTENINGS,....
- B01F:MIXING, e.g. DISSOLVING, EMULSIFYING, DISPERSING
- 2015 Application Filing Year
- C11B Class
- 251 Applications Filed
- 177 Patents Issued To-Date
- 70.52 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- C11B Class
- 33.33 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
