Branched organopolysiloxane and a method for preparing the same

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 9862803
SERIAL NO

15095598

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

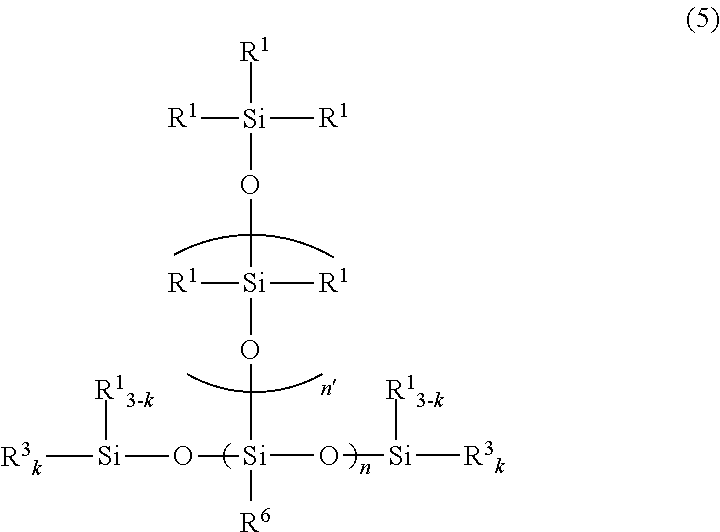

One of the purposes of the present invention is to provide a method for preparing an organopolysiloxane having a short branch chain. In particular, the purposes of the present invention is to provide a method for preparing an organopolysiloxane having a shorter side chain than a main chain, such as a siloxane side chain having 1 to 5 siloxane units. The present preparation methods are characterized in that the starting material is an organosiloxane which is represented by the formula (1) and has two hydrolyzable groups bonded to a silicon atom at one terminal. The present invention provides a method wherein an organo(poly)siloxane represented by the formula (1) is condensation reacted to prepare an organopolysiloxane represented by formula (2) which is then used as starting materials for introducing a branch, whereby a short siloxane side chain is efficiently introduced in the organopolysiloxane, while controlling a structure of the main chain.

Loading the Abstract Image... loading....

First Claim

See full text

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
SHIN-ETSU CHEMICAL CO LTD4-1 MARUNOUCHI 1-CHOME CHIYODA-KU TOKYO 1000005 ?1000005

International Classification(s)

  • [Classification Symbol]
  • [Patents Count]

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Kashiwagi, Tsutomu Annaka, JP 121 1182
Kusunoki, Takayuki Annaka, JP 30 59
Takamizawa, Yuusuke Annaka, JP 15 25

Cited Art Landscape

Load Citation

Patent Citation Ranking

Forward Cite Landscape

Load Citation

Maintenance Fees

Fee Large entity fee small entity fee micro entity fee due date
7.5 Year Payment $3600.00 $1800.00 $900.00 Jul 9, 2025
11.5 Year Payment $7400.00 $3700.00 $1850.00 Jul 9, 2029
Fee Large entity fee small entity fee micro entity fee
Surcharge - 7.5 year - Late payment within 6 months $160.00 $80.00 $40.00
Surcharge - 11.5 year - Late payment within 6 months $160.00 $80.00 $40.00
Surcharge after expiration - Late payment is unavoidable $700.00 $350.00 $175.00
Surcharge after expiration - Late payment is unintentional $1,640.00 $820.00 $410.00
