Bearing means brake device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
May 27, 2014
filing date -
May 28, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

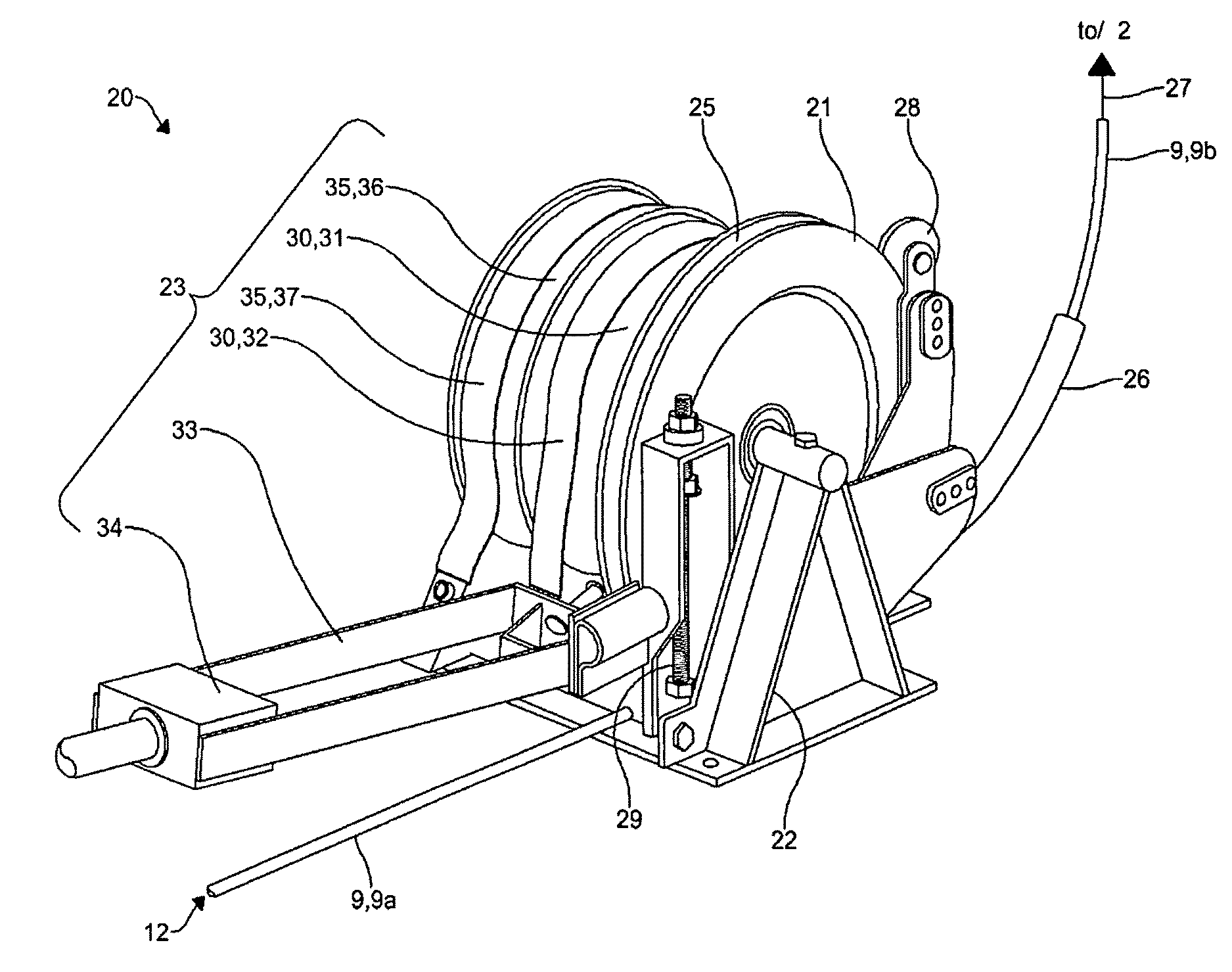

A method for introducing an elevator support into an elevator system includes a support brake device for controlling a drawing-in speed of the elevator support. The elevator support is wound on a support roller at a floor or in a machine room of a building. The elevator support is unwound from the roller and introduced into a shaft of the elevator system. The support brake device is arranged between the support roller and the shaft, and a drawing-in speed of the elevator support is adjusted by the support brake device. The support brake device contains a traction pulley for receiving the elevator support that is rotatably mounted in a support frame so that the elevator support can at least partly loop around the traction pulley. The traction pulley is braked by a pulley brake device, whereby the drawing-in speed can be controlled.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- B66B Class
- 320 Applications Filed
- 280 Patents Issued To-Date
- 87.50 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B66B Class
- 37.40 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
