Driving board folding machine and method of using a driving board folding machine to fold a flexible circuit
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Dec 2, 2013
filing date -
Dec 3, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

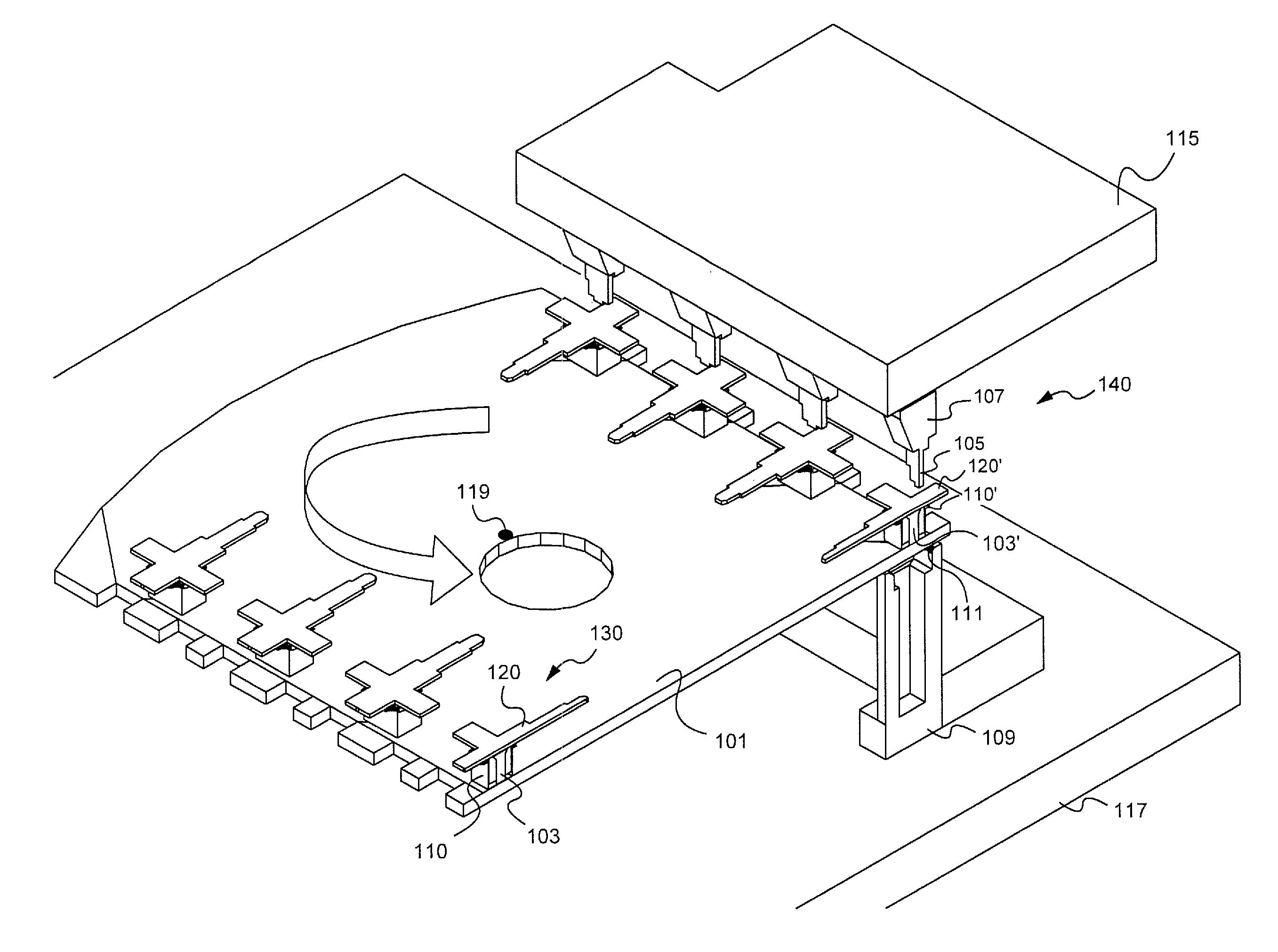

A driving board folding machine comprises a machine housing, a movable table and one or more pre-folding stations for holding an unfolded flexible circuit and a circuit housing. When the driving board folding machine is activated, the one or more pre-folding stations are moved to a folding station located within the machine housing and the flexible circuit is folded and inserted within the circuit housing. The driving board folding station is able to comprise multiple pre-folding stations on one or more sides of the movable table. A holding pin holds the flexible circuit in place while a forming press moves in order to preform the flexible circuit, fold the flexible circuit and move the circuit housing to insert the flexible circuit into the housing.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- B23P Class
- 1216 Applications Filed
- 880 Patents Issued To-Date
- 72.37 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B23P Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
