System for providing automatic feedback and adjusting transmittal pulling force for transporting glass fragment
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Jun 29, 2013
filing date -
May 10, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

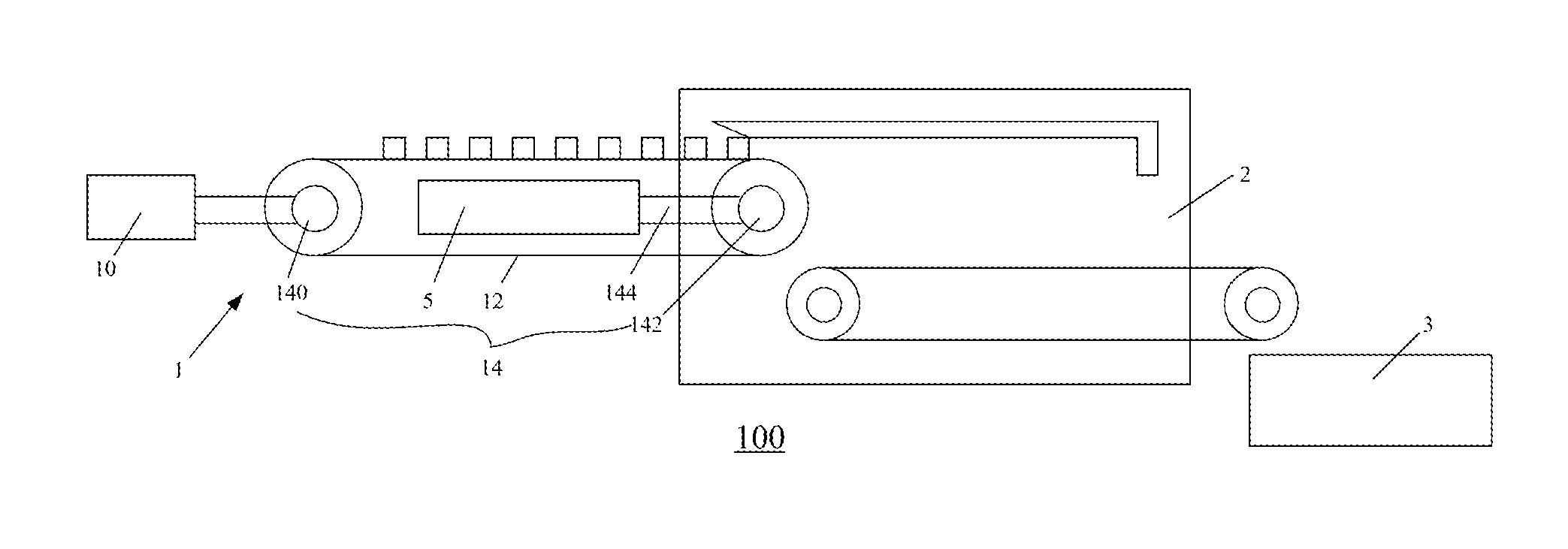

A system for providing automatic feedback and adjusting transmittal pulling force for transporting glass fragment, where the system comprises a delivery machine, a glass broken machine and a recycle box. The glass fragment is transmitted by the delivery machine and triturated by the glass broken machine, and the triturated glass fragment is then transported to the recycle box, the delivery machine comprises a driving motor, a conveyer belt and two driving rollers, where the conveyer belt surrounds the two driving rollers, the driving rollers are driven by the driving motor to rotate the conveyer belt, and the glass fragment on the conveyer belt is transported into the glass broken machine for triturating and recycling.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- G05B Class
- 2321 Applications Filed
- 1894 Patents Issued To-Date
- 81.61 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G05B Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
