Electrical component mounting structure for saddle-riding type vehicle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Aug 17, 2015
filing date -
Sep 30, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

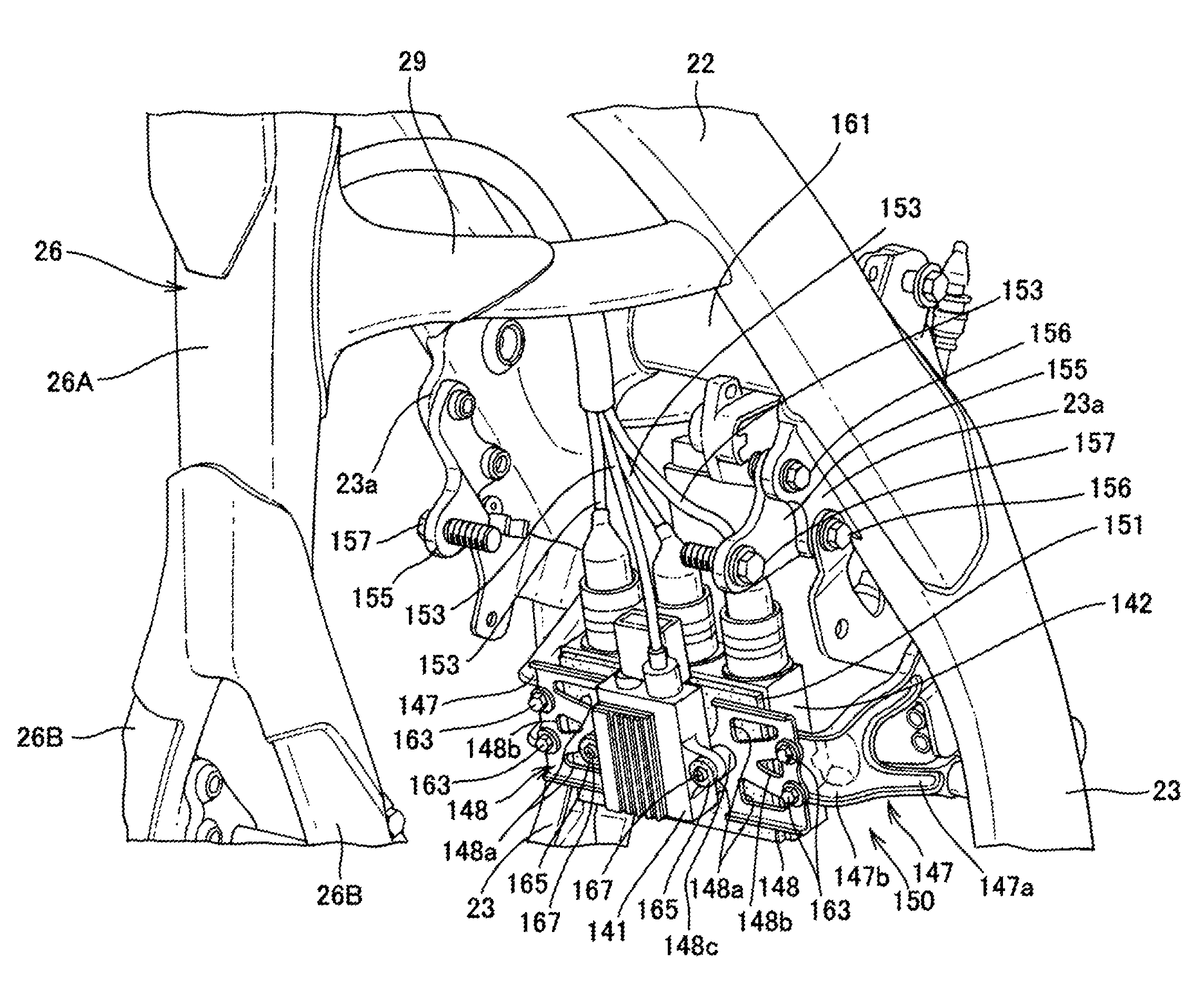

An electrical component mounting structure for a motorcycle includes a vehicle body frame. The vehicle body frame includes: main frames extending downwardly toward rear from a head pipe, the main frames for suspending a power unit; and pivot frames extending downward from rear ends of the main frames to be disposed at left and right in a vehicle width direction. An electrical component including a first ECU is supported in this electrical component mounting structure. In this electrical component mounting structure, the power unit includes a crankcase and a cylinder portion that protrudes from the crankcase, and the first ECU is disposed, in a side view, anterior to the left and right pivot frames, posterior to the cylinder portion, and above the crankcase.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- B62J Class
- 314 Applications Filed
- 264 Patents Issued To-Date
- 84.08 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B62J Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
