Cross member with inner flanges
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Grant Date -
Jan 4, 2018
app pub date -
Jul 1, 2016
filing date -
Jul 1, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

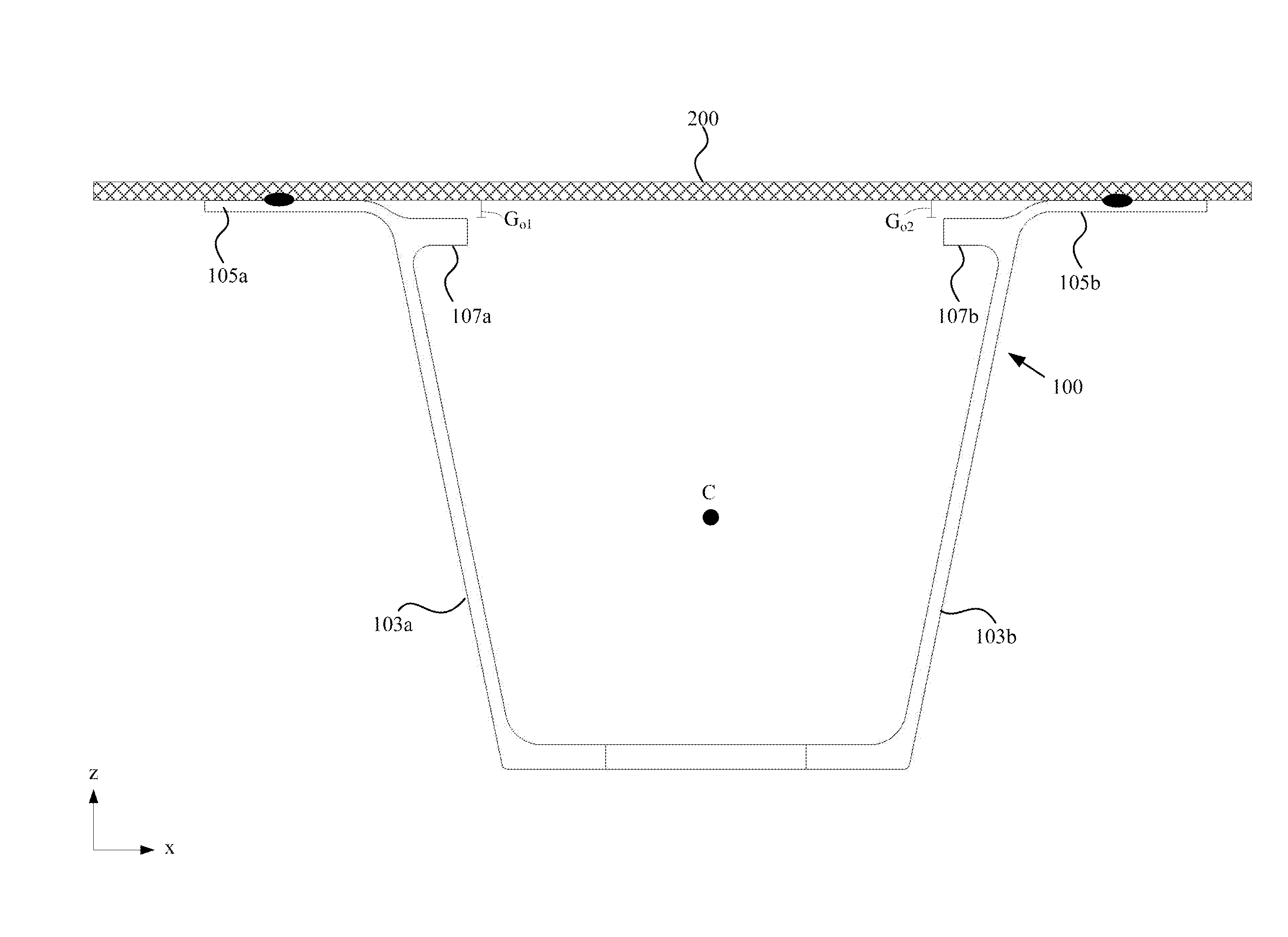

A cross member including a base including a first side wall inclined at a first angle with the base and a second side wall inclined at a second angle with the base creating a hollow portion between the first side wall and a second side wall, a first outer flange and a second outer flange projecting from the first side wall and the second side wall, respectively, in a direction away from the hollow portion, and a first inner flange projecting from a top side of the first side wall into the hollow portion, wherein the base, the first side wall and the second side wall, the first outer flange and the second outer flange, and the first inner flange form an open cross-section.
