Adjustable-height inserts and related methods
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Mar 7, 2016
filing date -
Mar 7, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

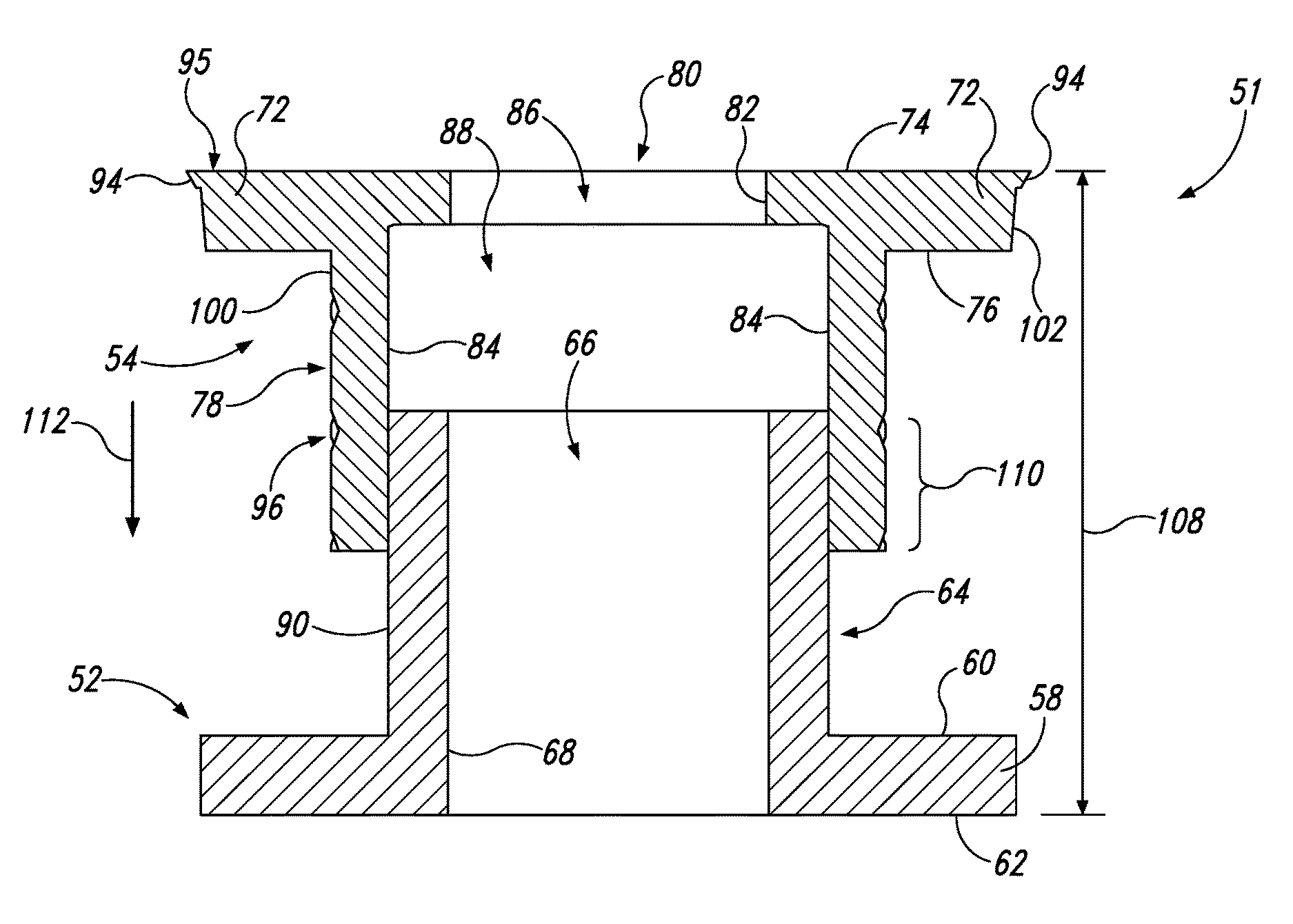

A two-part adjustable-height insert may be installed in a bore of a sandwich panel, such that the adjustable-height insert may be configured to transfer a load to the sandwich panel. The adjustable-height insert may include a first insert part and a second insert part that may be selectively operatively positioned with respect to each other. The adjustable-height insert may be configured such that an interference fit between the first insert part and the second insert part may be engaged by moving a second flange of the second insert part towards a first flange of the first insert part, which may thereby reduce the overall height of the adjustable-height insert to a selected height. Presently disclosed adjustable-height inserts may be configured for flush installation in a sandwich panel. Methods of installing such adjustable-height inserts and adjusting the height of the same are also disclosed.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- F16B Class
- 1804 Applications Filed
- 1257 Patents Issued To-Date
- 69.68 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 7 Citation Count
- F16B Class
- 36.81 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
