Apparatuses and methods for efficient sealing of vacuum bag seams
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Apr 1, 2014
filing date -
Apr 1, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

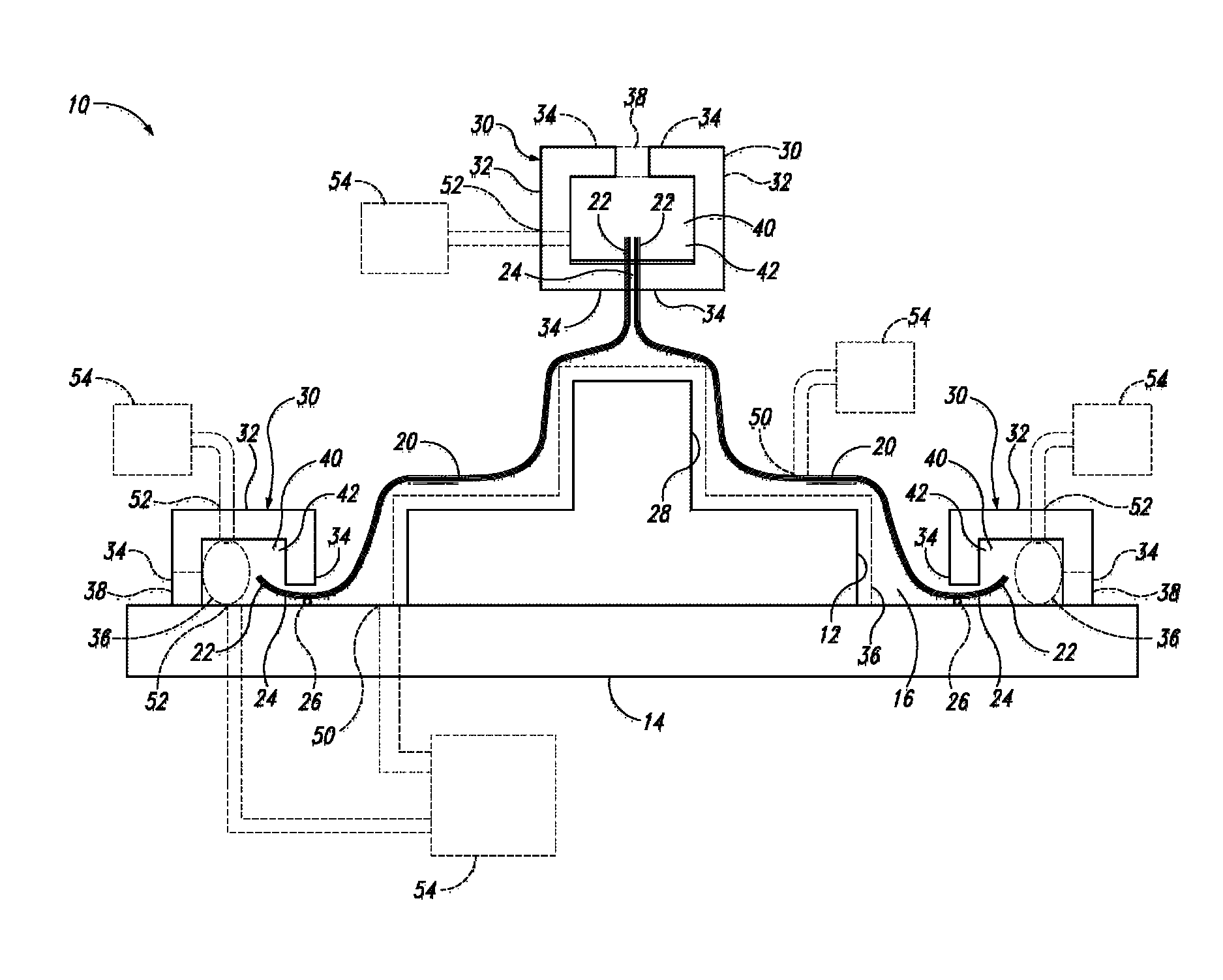

Apparatuses and methods of the present disclosure relate to efficient sealing of vacuum bag seams for vacuum bag processing of composite parts. Vacuum bags may enclose a composite part and form a first sealed region around the composite part. The first sealed region may be sealed by vacuum bag seams to a base supporting the composite part and/or to other vacuum bags. The vacuum bag seams may be sealed with an edge sealing frame that forms a compression seal and that defines a second sealed region including the sealed seam. Vacuum applied to the second sealed region forms a vacuum moat adjacent to the seam and/or at least partially surrounding the first sealed region. Hence, minor leaks in the compressively sealed seam are mitigated by the vacuum moat and the vacuum integrity of the first sealed region is maintained despite some potential leaks in the sealed seam.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- B29C Class
- 4829 Applications Filed
- 3911 Patents Issued To-Date
- 80.99 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B29C Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
