Industrial robot system having sensor assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Grant Date -
Oct 1, 2015
app pub date -
Jun 11, 2015
filing date -
Nov 9, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

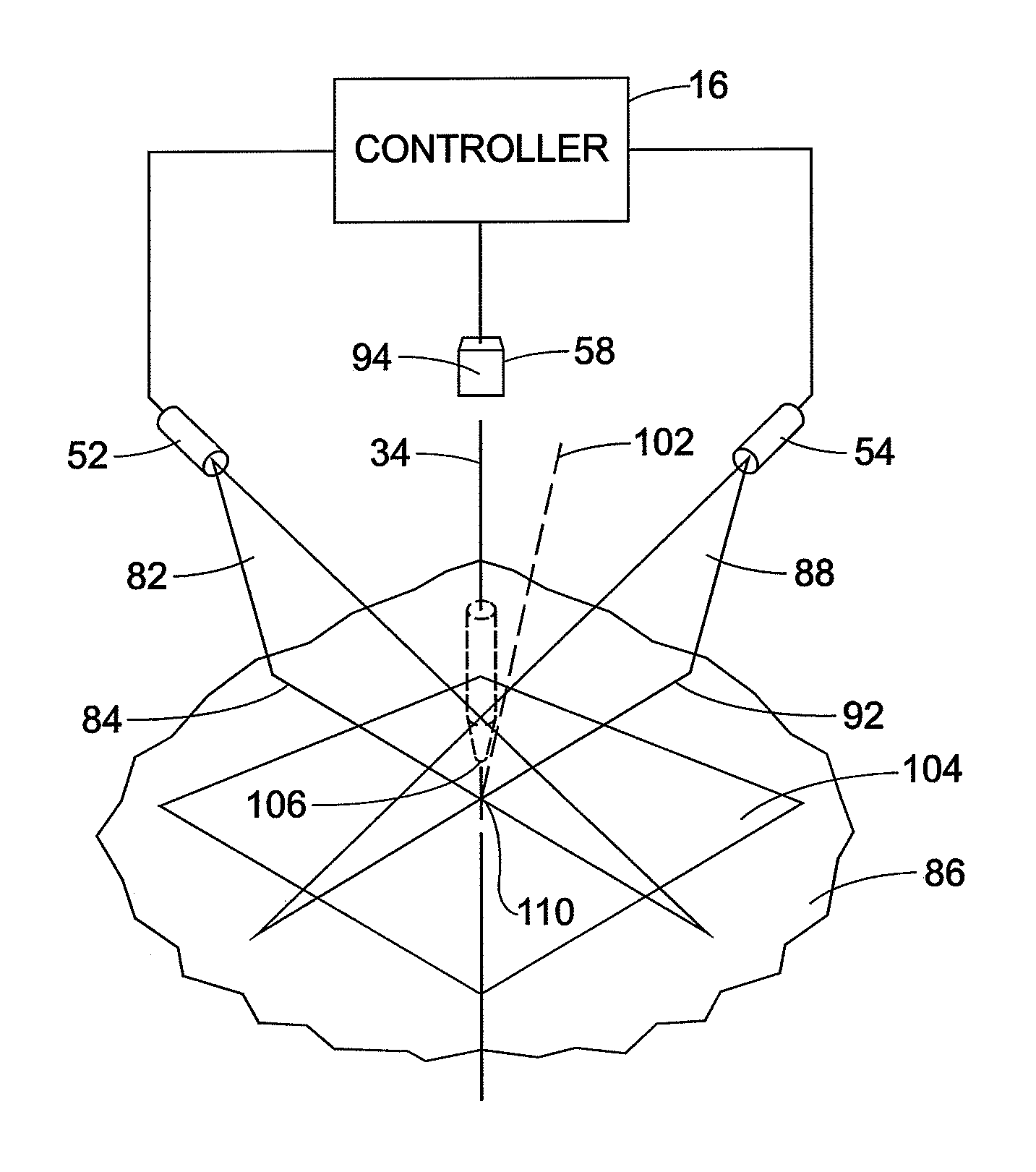

An industrial robot system includes an end effector connectable to a robot arm, a drive assembly, and a controller. The end effector includes a distal housing, a spindle assembly rotatable about a rotational axis, a drill bit rotatable about the rotational axis, and a sensor assembly. The sensor assembly includes a first light source, a second light source, and a photosensitive array. The first light source produces a first fan of light which is projected as a first line of light on the object surface. The second light source produces a second fan of light, which is projected as a second line of light on the object surface. The photosensitive array detects a first reflection line corresponding to the first line of light and a second reflection line corresponding to the second line of light.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- B23B Class
- 549 Applications Filed
- 457 Patents Issued To-Date
- 83.25 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B23B Class
- 29.90 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
