Machine and method for producing a cartridge for an electronic cigarette provided with a heat resistor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Nov 25, 2015
filing date -
Nov 26, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

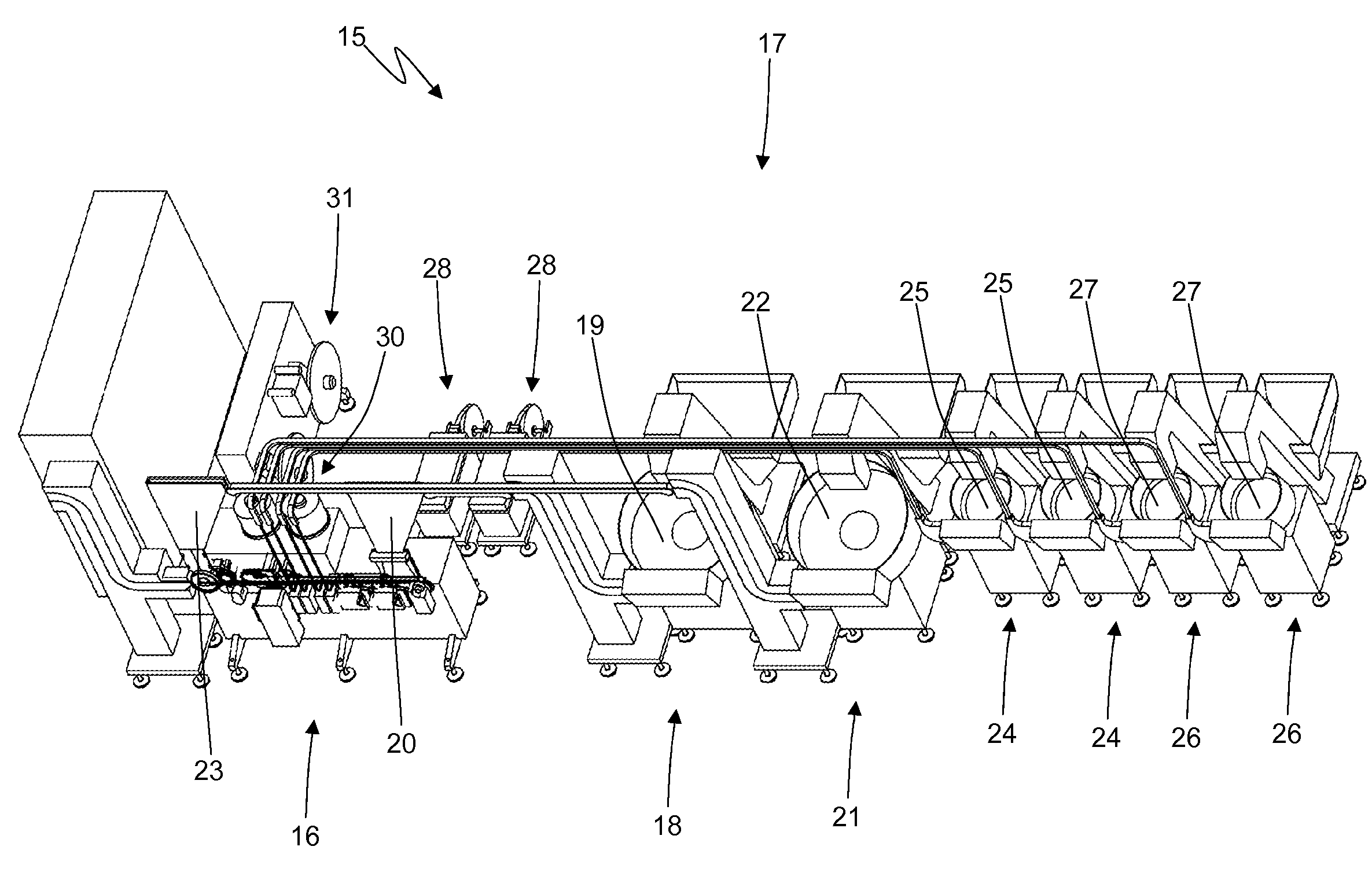

A manufacturing machine and a method for producing a cartridge for an electronic cigarette comprising a supporting base, a pair of power electrodes fitted to the supporting base, and a heating member folded into a ‘U’ around the power electrodes are disclosed: a conveyor comprising a pocket for feeding the supporting base fitted with the power electrodes along a conveying path; a connecting unit which connects the heating member to the power electrodes while the supporting base, fitted with the power electrodes, is housed inside the pocket on the conveyor; a welding device located along the conveyor to weld a pair of terminals of a heat resistor of the heating member to the corresponding power electrodes; and a folding device, which cooperates with the connecting unit and folds the heating member into a ‘U’ before the heating member is connected to the power electrodes.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- B23K Class
- 2354 Applications Filed
- 1765 Patents Issued To-Date
- 74.98 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- B23K Class
- 37.97 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
